Lenovo Y520: SD Card Reader and sleep don't work

[George1203]

I almost finished the hackintosh of Lenovo Y520 with OC in MacOS Monterey.

There are two features not working including O2 SD Card Reader and sleep-black screen.

Wifi and BT are working with Broadcom 94360NG, air-drop and hand-off OK.

Patch the SSDT-SDCard.aml or define the Device Property is the same result, that only show the SDCard Reader is detected but without AppleSDXC.kext.

In the Kernel patched AppleSDXC.kext and AppleSDXCInjector.kext are not work.

I try to block, Force or patch is still no work.

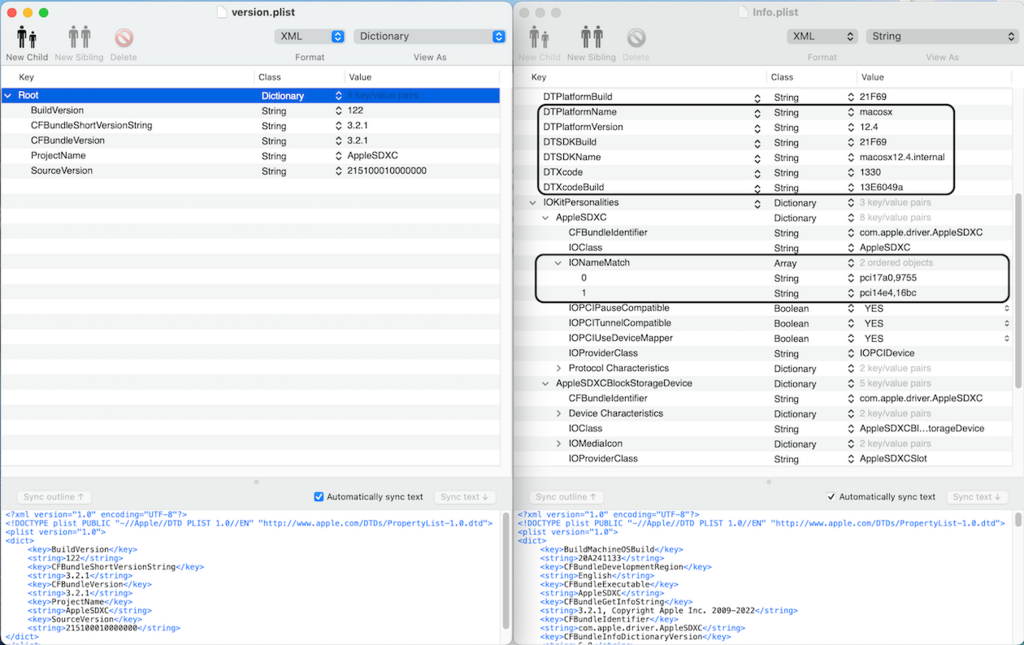

In the original AppleSDXC I find the IONameMatch pci17a0,9755 and pci14e4,16bc, as I change the compatible to pci17a0,9755, macOS system report show the device driver is on but actuarially is block by the sub driver of AppleSDXCBlockStorageDevice.

Here are the attched files as below,

Could you help me to verify the problem and thank you very much.

ACPI_SSDT.zip configOC.plist.zip DSDT.aml.zip MacBook Pro.ioreg.zip

[Jake Lo]

your ioreg file seems to be corrupted

remove AppleSDXCInjector.kext and VoodooSDHC.kext

[George1203]

Jake Lo

Thanks for your reply

have removed AppleSDXCInjector.kext and VoodooSDHC.kext

is still no work

MacBook Pro.ioreg

[Jake Lo]

try this, made a few mod to your config fileconfig.plist.zip

[George1203]

enable the Change Method(GPRW,2,N) to XPRW

change the subsystem-vendor-id

still can not be dected



MacBook Pro0625.ioreg

[Jake Lo]

the xprw is to fix sleep issue

try this one

config.plist.zip

[George1203]

the xprw can not fix sleep issue, mouse and keybord seems no work after sleep

enable the aspi of Change _OSI to XOSI and replace the  subsystem-vendor-id same as Broadcom wifi

is still no work

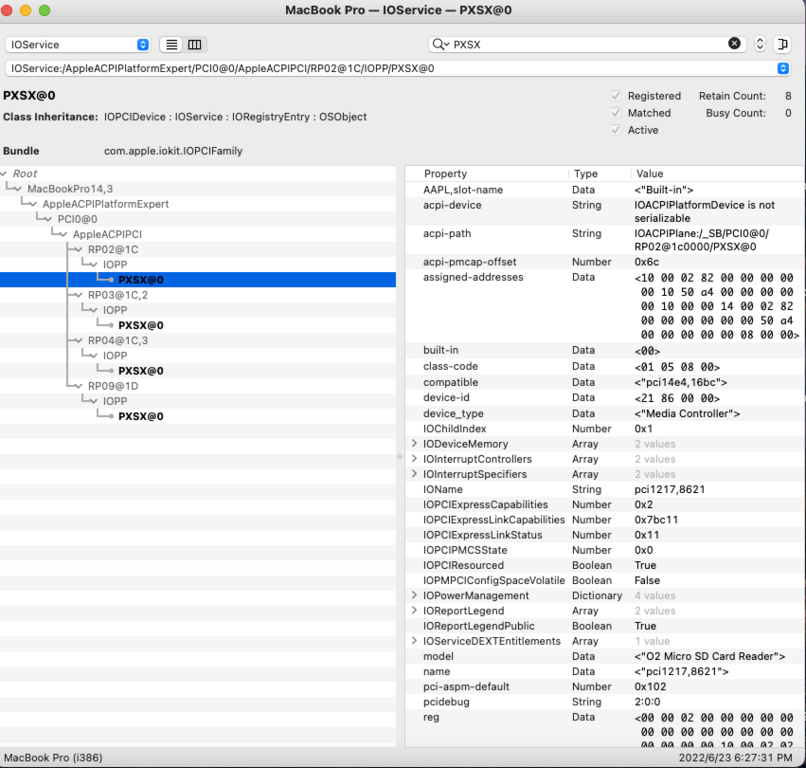

i have to add the patch of SSDT-SDCard.aml in order to get the reulit as below (deteted and no driver on)

[Jake Lo]

look under card reader, not PCI, that's just for cosmetics only.

[George1203]

Crad reader is nothing

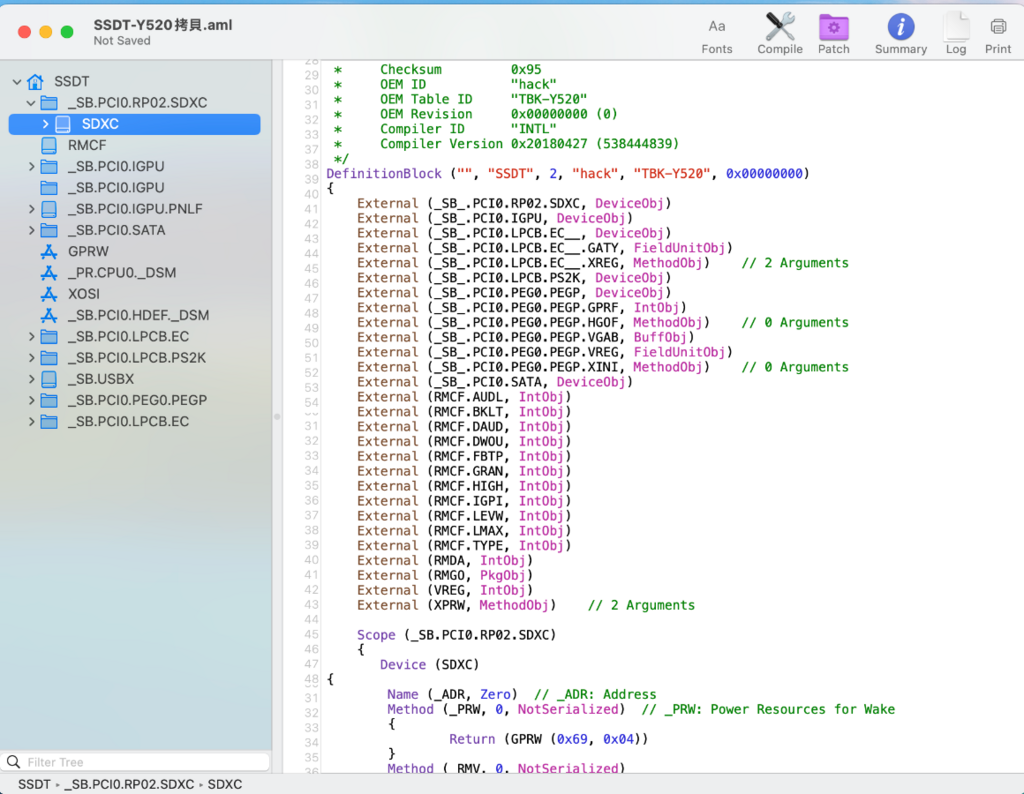

Could we try to add the PR02.SDXC into the patch of SSDT-Y520.aml

Device (SDXC)

{

Name (_ADR, Zero)  // _ADR: Address

Method (_PRW, 0, NotSerialized)  // _PRW: Power Resources for Wake

        {

Return (GPRW (0x69, 0x04)) }

Method (_RMV, 0, NotSerialized)

{                 Return (0x00)

}

}



**the Return (GPRW (0x69, 0x04))   need to check 0x69, 0x04 is correct

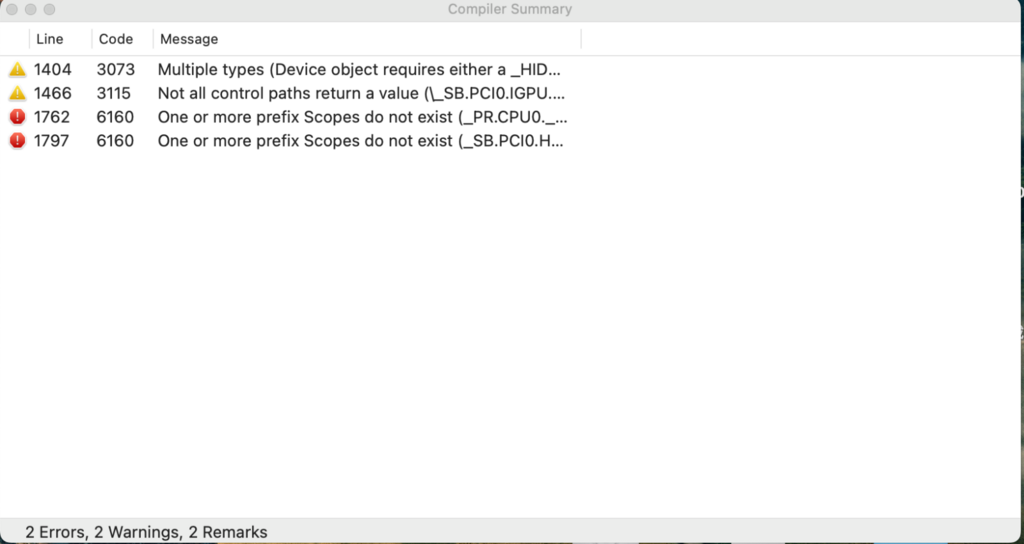

I try to add but i have no idea compile



I just want to chang the PR02 PXSX to SDXC, befor the code of  Device (SDXC) should add Device(PR02)

sorry i am a new guide and no skill of any computer language









[Baio77]

Hi, I have had a look at the files and it seems to me that the base of this EFI is very obsolete, surely it has been converted by Clover. ACPI files are old fashioned. So I started the ACPI thanks to the DSDT posted, so a Test of my EFI + ioreg is missing. This is just the starting point as it probably needs adequate \ improved things, like the trackpad probably can be improved, I just need your cooperation.
https://drive.google.com/drive/folders/1i-_ME1LBNFuOsPXdeahQnO22umdzCo82?usp=sharing Test this in USB , if start ioreg .
