ZainAnjum Posted December 3, 2023 Share Posted December 3, 2023 I need help with the EFI, I have tried making my own but getting stuck during boot please help me. My specs: Processor: Core i5 8250u Ram: DDR4 16GB ram @ 2400 Mhz Storage: 500gb Hdd Wifi: Intel AC 8625 Audio: ALC 3246 I have Tried GitHub 7490 but during installation there is a kernel panic. Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted December 4, 2023 Moderators Share Posted December 4, 2023 try updating the OC version and kexts You can also try disabling SMCProcessor.kext in the Config file 1 Link to comment Share on other sites More sharing options...
ZainAnjum Posted December 4, 2023 Author Share Posted December 4, 2023 After disabling SMCProcessor.kext in the Config file unable to boot. Link to comment Share on other sites More sharing options...
ZainAnjum Posted December 5, 2023 Author Share Posted December 5, 2023 I was able to install Ventura on my Dell 5490 by using this EFI. What is working. Intel wifi. Sound. Graphics Acceleration. Handsfree. Trackpad, keyboard. Function keys to control sound and audio. Whats not working. Bluetooth. Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted December 6, 2023 Moderators Share Posted December 6, 2023 post IOReg file Link to comment Share on other sites More sharing options...

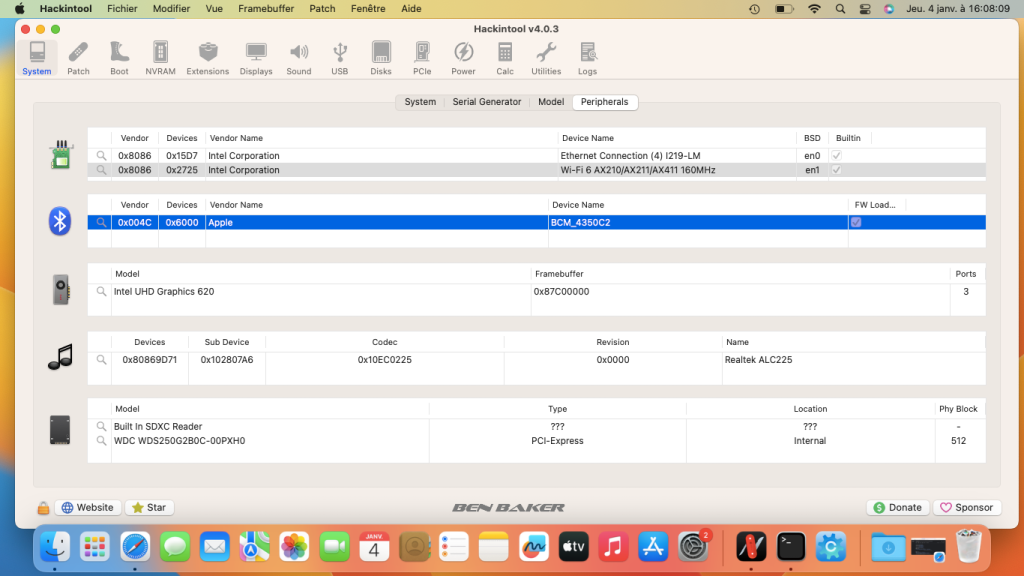

D54250WYKH-PS Posted January 4 Share Posted January 4 Thanks @ZainAnjum it works too on a 5290 i5 7th Gen 7300 Kaby Lake needed to adapt for the sound to ALC225, also have the issue with bluetooth, but I'm using an AX210 intel, this may differs from yours but I've noticed in Hackintool that Device Name is showing a Broadcom instead of AX210 just like on my other Nuc hackintosh, see below. Any idea to resolve this ? Link to comment Share on other sites More sharing options...
Administrators Hervé Posted January 4 Administrators Share Posted January 4 It's probably something you incorrectly inject in your setup/config. You can always click on the magnifier icon at the left of the BT line to see what kext is loaded for that device. You may also consult the USB tab to check what's reported for Bluetooth and against which port. Finally, check your IOReg; ideally post it. But given that I see that the "FW Loaded" case is checked, I reckon you probably inject one of those Broadcom firmware kexts and/or Broadcom injector. After all, I see that the last EFI linked by @ZainAnjum does contain the following kexts: BrcmBluetoothInjector BrcmFirmwareData BrcmPatchRAM3 and a config file called config_Broadcom. Maybe you've mixed or used some of those things, we cannot know. Link to comment Share on other sites More sharing options...
D54250WYKH-PS Posted January 5 Share Posted January 5 Thanks Hervé for your time. I've made a couple of modifications from EFI posted, and took all 3 BRCM kexts off in the config.plist. Please find it attached for EFI and Ioreg. IOReg : https://drive.google.com/file/d/1NcEUYvEwBOa5mz5IaHLNTjfNWgOmGEwM/view?usp=share_link EFI : https://drive.google.com/file/d/1eBZasUx0DM0jxLaH024ZeLmjr04yk4c2/view?usp=share_link Really appreciate your time here. Link to comment Share on other sites More sharing options...
Administrators Hervé Posted January 5 Administrators Share Posted January 5 Remember to always apply Clear NVRAM at OC Picker once you reboot after changing your config file... Link to comment Share on other sites More sharing options...
D54250WYKH-PS Posted January 6 Share Posted January 6 Thanks for the tip Hervé, it finally did the trick, really appreciated your guidance. Otherwise, I've been able to upgrade directly from Ventura to Sonoma from system, I was quite astonished that it was doable. Link to comment Share on other sites More sharing options...
