e5450 Posted July 7, 2015 Share Posted July 7, 2015 Hello, did anyone successfully install OS X Yosemite on Dell Latitude E5450? Intel Core i5-4310U14" 1920x1080 Intel HD 4400 500GB SATA HDD8GB DDR3Dualband Intel 7265 AC WLAN => replace with xyz I think, legacy boot is not possible - i have to use UEFI boot with Clover. Thanks a lot. Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted July 7, 2015 Moderators Share Posted July 7, 2015 Are you sure about the specs or model? E5450 should have the Core M processor (Broadwell) with HD 5500 E5440 would have the specs you have listed (Haswell) ... Clover UEFI would work on either system. Update: Looks like Dell does offer 4th or 5th Gen Core for this model. Generally on Dell System: Exx20 = SandyBridge Exx30 = IvyBridge Exx40 = Haswell Exx50 = Broadwell To get started, check this guide We could assist with any issue you may encounter following the guide Link to comment Share on other sites More sharing options...

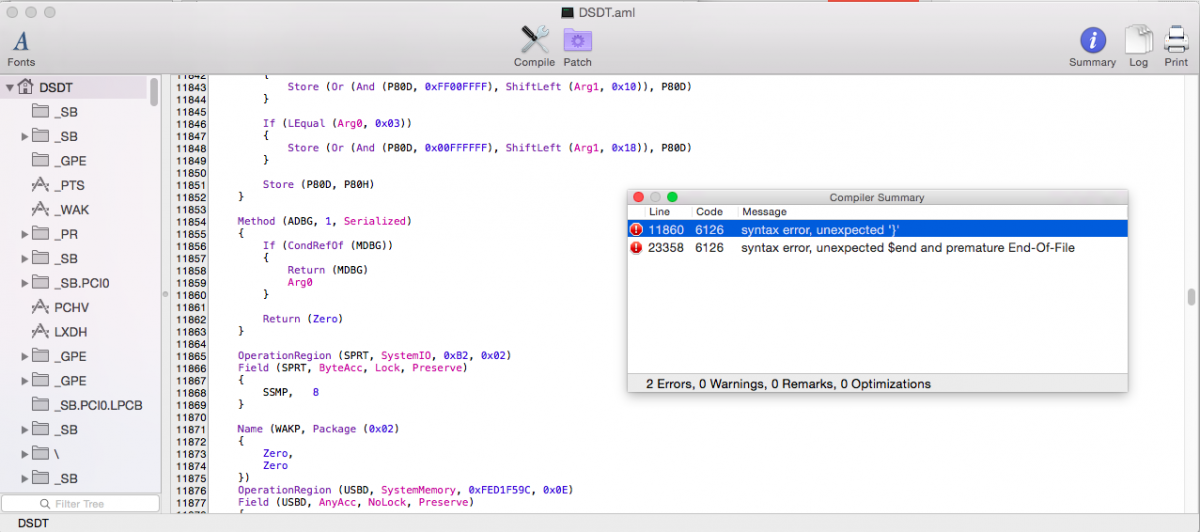

e5450 Posted July 8, 2015 Author Share Posted July 8, 2015 Hello, thanks a lot. 5. Clover bootloader screen shows up, press F4 (this will dump your dsdt, ssdt), and shutdown. 6. Use another Mac, download HVT here, run the tool and install Tools > MacIASL, run MacIASL, go to Preferences and set to ACPI 5.0, then open /EFI/Clover/ACPI/origin/dsdt.aml in CLOVER USB drive. Click Compile, you will see 2 errors. Select the first error, you will see lots of Zero, delete them all. Click compile, you will see 1 error left.Click Patch button, download the patch here and apply:https://www.dropbox....x40 patches.txt Click Compile to check for errors, if no error (ignore warnings), you can save the file with File Format: ACPI Machine Language Library, name DSDT.aml to /EFI/Clover/ACPI/patched/ (of CLOVER USB). Point 1 to 5 => all fine I pressed F4 and used my MacBookPro 10.10.4 to instal MacIASL (Hackintosh Vietnam Tool 1.9.4 20150707). I set ACPI in MacIASL to 5.0 and opened the dsdt.aml from /EFI/Clover/ACPI/origin/. Please, see the Error.png in the appendix. What's wrong with my dsdt.aml? DSDT.aml.zip Link to comment Share on other sites More sharing options...
Administrators Bronxteck Posted July 8, 2015 Administrators Share Posted July 8, 2015 it does not like the } on line 11860 Link to comment Share on other sites More sharing options...
Administrators Hervé Posted July 8, 2015 Administrators Share Posted July 8, 2015 It's probably the line above that erroneous, maybe expecting Arg0 () rather than just Arg0 Furthermore, a Return statement is usually the last one in any part of DSDT code with nohing right immediately after except a closing "}". Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted July 8, 2015 Moderators Share Posted July 8, 2015 @E5450 Here's the fixed DSDT including patches to enable the following: HD4400 USB 3.0 Battery Status BackLight brightness other fixes Rename to DSDT.aml and place in /EFI/Clover/ACPI/Patched E5450.aml.zip Link to comment Share on other sites More sharing options...

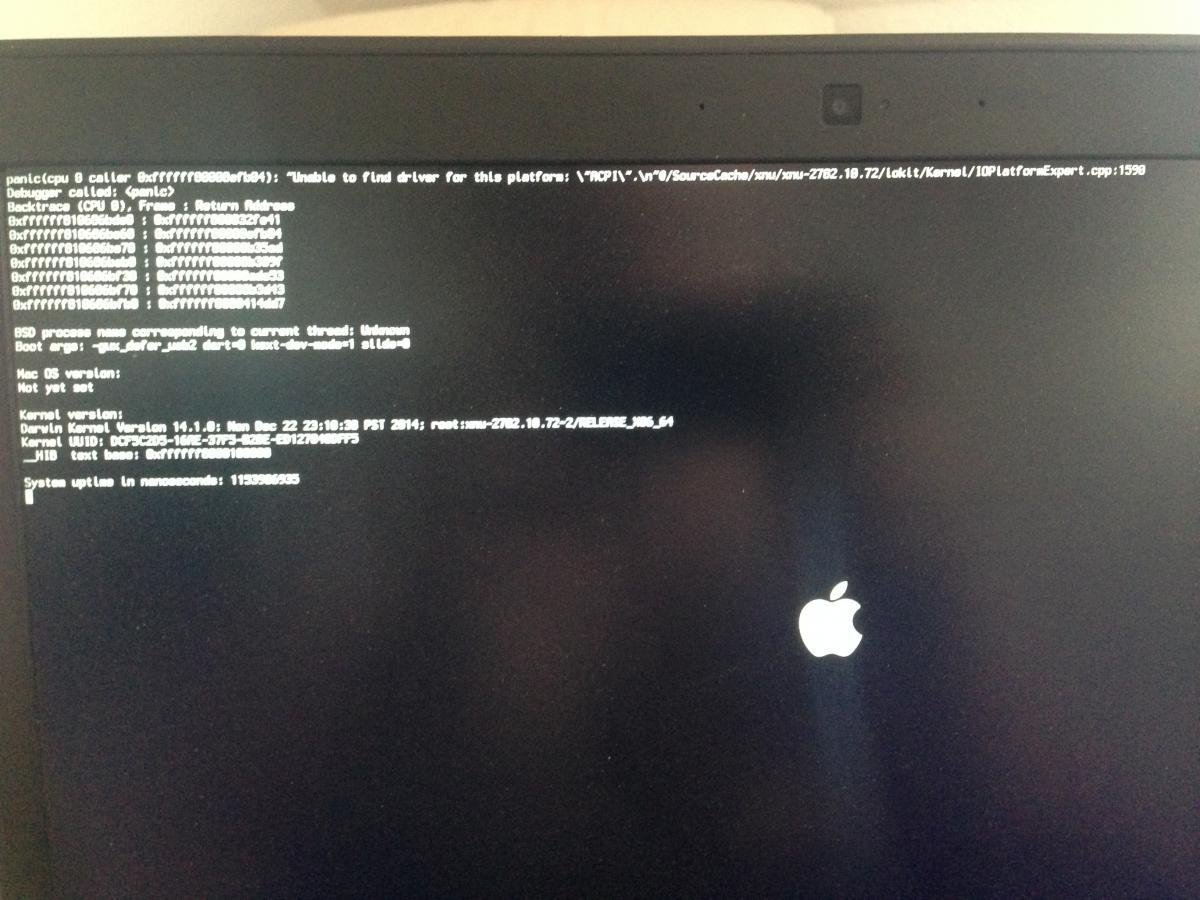

e5450 Posted July 9, 2015 Author Share Posted July 9, 2015 Thanks for patching the DSDT.aml After booting from USB (with your patched DSDT.aml in /EFI/Clover/ACPI/Patched) - there ist the following error: panic(cpu 0 caller 0xffffff00000sfb04): "Unable to find driver for this platform: \"ACPI\".\n"0/SourceCache/xnu/xnu-2782.10.72/iokit/KernelIOPlatformExport.cpp:1598 with -v, there is the same error msg and no more informations. Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted July 9, 2015 Moderators Share Posted July 9, 2015 can you upload your config file? Try this bootpack. Replace your config with attached For kext, use kexts attached in Other folder Install Other/SLE/* to /S/L/E with kextwizard or kext utility of your choice E5450.zip Link to comment Share on other sites More sharing options...

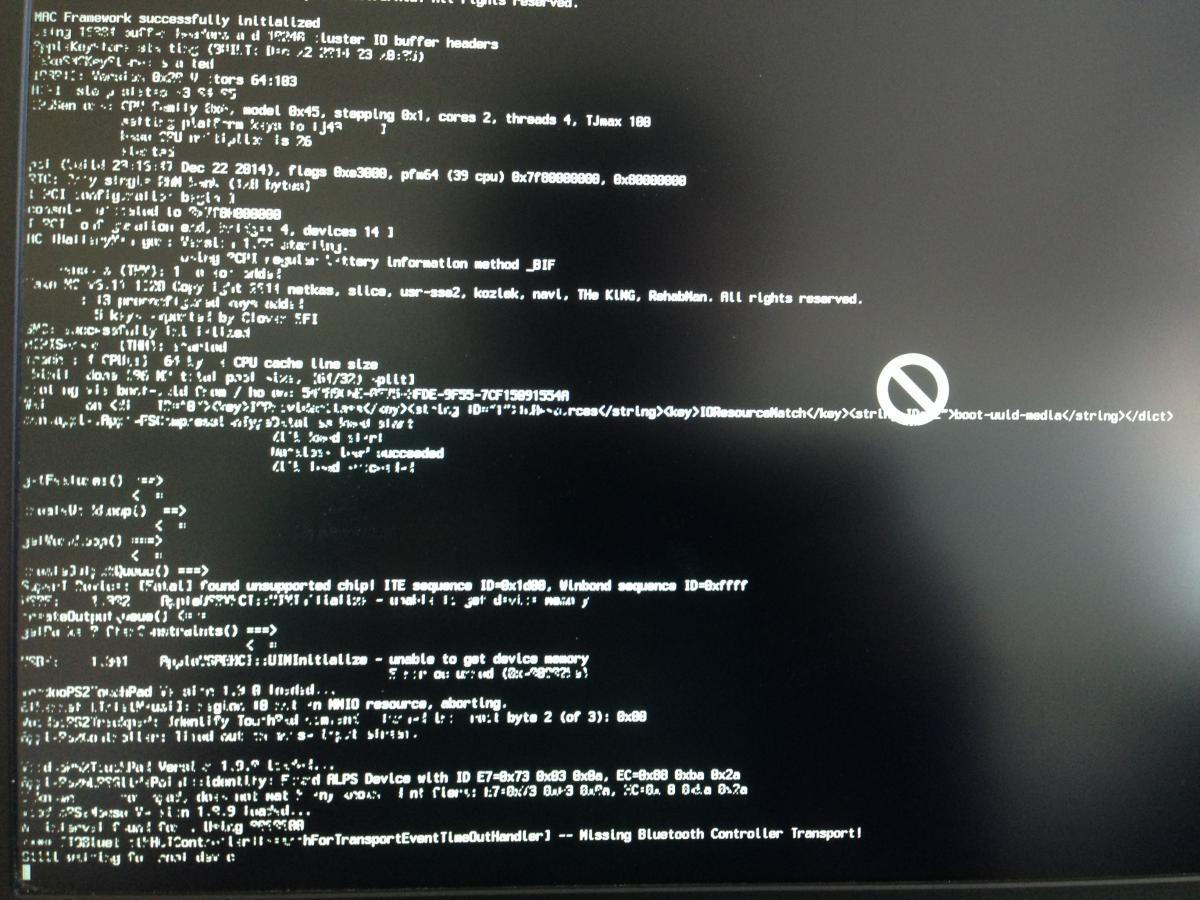

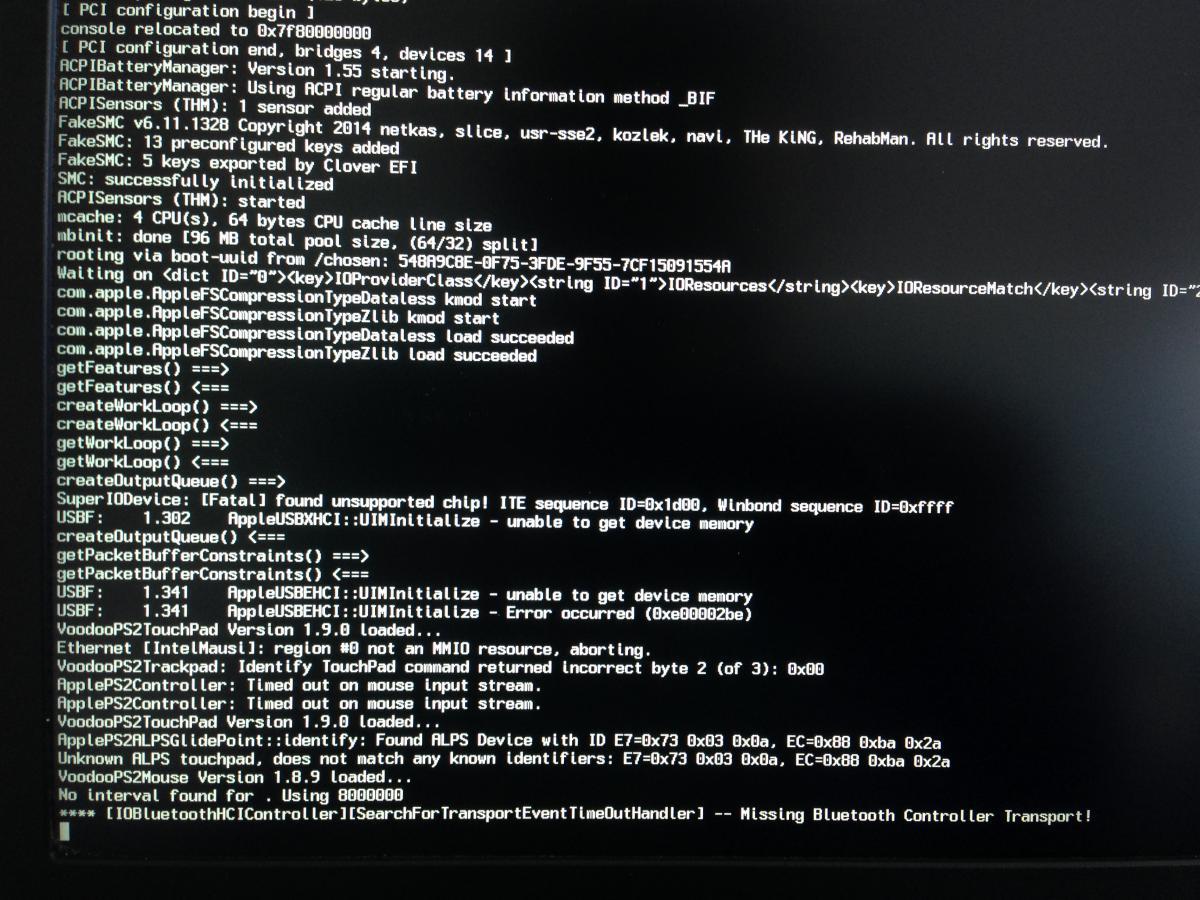

e5450 Posted July 10, 2015 Author Share Posted July 10, 2015 Hello, thanks for your bootpack In the appendix is a copy of the content in [uSB-Clover]/EFI/ I installed your kexts from Other/SLE/* with kextwizard to [uSB-MAC-Install]/System/L.../E... Now, there is an error with Bluetooth... Should i disable Bluetooth in BIOS? EFI-new.zip Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted July 10, 2015 Moderators Share Posted July 10, 2015 Sorry, I meant to install the kexts in SLE after you have a running OS X, but I don't think there's any ill-effect having them in the Installer. Does this system have an nvidia card too? Try enabling the following under Boot with Clover Configurator nv_disable=1 slide=0 As always, go to the BIOS, reset all to default and only enable AHCI in SATA Operations Link to comment Share on other sites More sharing options...
