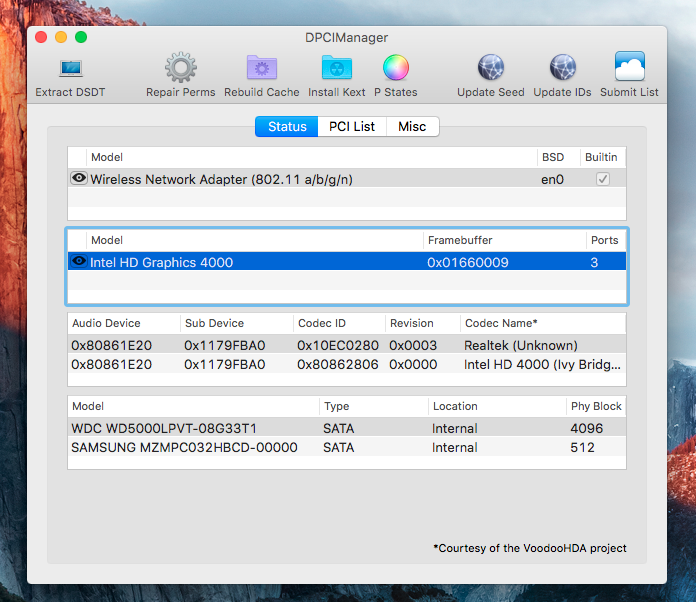

Hi all i install el capitan with clover on my Toshiba satellite u840w ultrabook all working good except sleep, after sleep laptop open again and i have black screen . my screen id is 0x01660009 1792x768


laptop specs :


- intel i5 3317u 1.7ghz with turbo boost 2.6ghz

- intel hd 4000

- audio working with voodoohda.kext only i try hda patch but no luck.

- 4gb ram

- screen 1792x768 working

- wifi change with atheros

- camera work

- app store work facetime work

- dsdt patch


brightness slider  work but not key (fn+f2-f3)

this is my efi clover folder with DSDT & SSDT , etc.

i need help with sleep please.










Link to comment
Share on other sites

  • Replies 26
  • Created
  • Last Reply

Top Posters In This Topic

change macbook pro 9.2 to macbookair 5.2 cpus working better but sleep not working .

install dsdt patch system_HPET and system_IRQ but nothing......eny idea?


I Install osx on mSATA SSD maybe blame this and  what does not work ?


how to and function key for brightness control ? on windows and ubuntu using fn+f2 f3

Link to comment
Share on other sites

  • Moderators

Your Config file is corrupted. Looks like you try adding some AppleHDA patches, remove the 1st 3 AppleHDA patches should fix it.

As for display issue after sleep, have you tried different ig-platform-id?

Try 0x01660004 or 0x01660003


Brightness control, try Fn+Pause and Fn+scrollLock, works on Dell, can't confirm on Toshiba.

Link to comment
Share on other sites

Jake Lo thanks for respond i tried different ig-platform-id but i have black screen and not boot ....also fn key to tell me not work .I remove all AppleHDA patches audio work fine with voodoohda.


Link to comment
Share on other sites

  • Administrators

Just to clarify things regarding framebuffers:

  • HD3000 graphics of Sandy Bridge CPUs i3/i5/i7 2xxx CPUs is handled by SNB frame buffer kext
  • HD4000 graphics of Ivy Bridge CPUs i3/i5/i7 3xxx CPUs is handled by Capri frame buffer kext
  • HD4x00/5000 + Iris 5x00 graphics of Haswell CPUs i3/i5/i7 4xxx CPUs is handled by Azul frame buffer kext

You have an Ivy Bridge i5-3317U CPU with integrated HD4000 graphics so the Capri FB is the only one of concern on your laptop.

Link to comment
Share on other sites

there is a case to be corrected in some way;


0x01620005 HD 4000 Desktop

0x01660000 HD 4000 Mobile
0x01660001 HD 4000 Mobile
0x01660002 HD 4000 Mobile
0x01660003 HD 4000 Mobile
0x01660004 HD 4000 Mobile - 1600x900 yada 1920x1080
0x01660008 HD 4000 Mobile
0x01660009 HD 4000 Mobile
0x0166000A HD 4000 Desktop
0x0166000B HD 4000 Desktop

Link to comment
Share on other sites

  • Administrators

You're not the 1st one to do this but do not confuse your hardware id + revision id with graphics FrameBuffer layout id. It's not the same at all. Just because you have an HD4000 GPU with hardware id 0166 and revision 9 does not mean you use HD4000/Capri layout-id 0x01660009. Far from it, but it does not mean that it should not either...


Many (most?) IvyBridge Hackintosh laptops with HD4000 graphics will actually use layout-id 0x01660003.

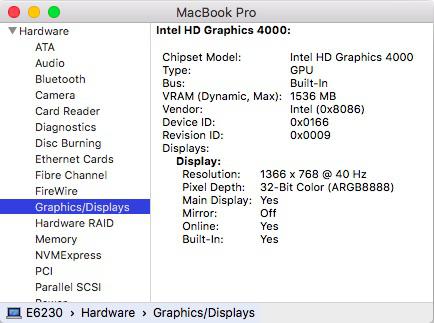

Look at my E6230 for instance (i5-3340M CPU)... SysProfiler shows device id 0166 with hardware revision 9, but we use layout-id 0x0166003 in the DSDT:


           Method (_DSM, 4, NotSerialized)  // _DSM: Device-Specific Method            {
                If (LEqual (Arg2, Zero))
                    Return (Buffer (One)
                Return (Package (0x04)
                    Buffer (0x04)
                         0x03, 0x00, 0x66, 0x01
                    Buffer (0x0A)
