M6600 Setup


Pupilliam
 Share

Recommended Posts

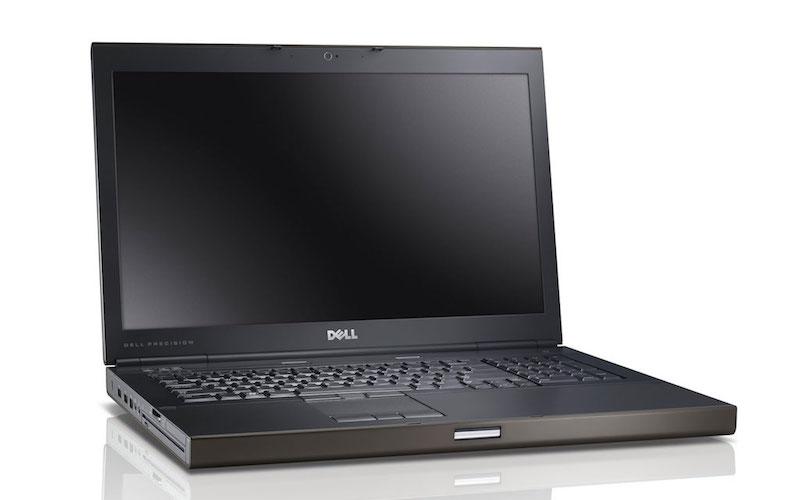

post-4953-0-43443400-1487586039_thumb.jpgSpecifications:







Processor : Intel Core i7-2720QM @ 2.20GHz
Graphics : Nvidia Quadro 3000M / Intel HD3000
Chipset : Intel QM67 Espress
Hard Disk : 256GiB SanDisk SSD
RAM : 16GiB 1333MHz
WiFi : Dell Wireless 1510
Bluetooth : None
Ethernet : Intel 82579LM Gigabit
Audio : IDT 92HD90 Audio
Touchpad : ALPS Touchpad
Monitor : 17.3" HD (1920 x 1080)
Card Reader : Ricoh
Bootloader : CloverUEFI

Ports:
1 x Microphone 3.5 mm
1 x Headphone 3.5 mm
1 x USB/eSATA
1 x VGA
1 x DisplayPort
1 x HDMI
1 x Thunderbolt
2 x USB 2.0
2 x USB 3.0



Working:





Graphics with QE/CI on Nvidia Quadro 3000M | Native, better performance with web drivers, disable Optimus

USB 2.0 | USB-inject-all

USB 3.0 | GenericUSBXHCI

Touchpad & Keyboard | VoodooPS2

Battery | ACPIBatteryManager

SpeedStep | SSDT Required & AppleIntelCPUPowerManagement

Audio | VoodooHDA

Ethernet





Not working:





Sleep

SD Reader

VGA and HDMI | Haven't tested





Other Notes:





OS Configuration:

Windows 10 on the mSATA port, Sierra on an SSD.

Clover is installed to the mSATA SSD.





EDIT: For anyone interested, I'll be writing a guide here soon with more progress on my hackintosh. I have to start over fresh from Windows, so I'll let you know how that goes.

EFI.zip

  • Like 1
Link to comment
Share on other sites

Will do. Do I need AppleHDADisabler for VoodooHDA?

I've never had much luck with VoodooHDA.



I'll check out that Ethernet kext!



EDIT: Ethernet works now. Thank you!



EDIT 2: VoodooHDA works. Have to edit the volume change fix in info.plist.

Edited by Pupilliam
Link to comment
Share on other sites

  • Moderators

For HDMI Audio, you might need a patched AppleHDA instead of the VoodooHDA. There might be a patched kext already available, what's codec ID? You could check it in the BIOS, if not then you might need to do a codec dump from linux or ubuntu. See here, chapter 1, part 1 section 1.

Link to comment
Share on other sites

  • Administrators

IDT92HD90 is same audio codec as fitted to the Latitude E6x20 Series. As such, you should be able to re-use the same AppleHDA patch as used on those. You can grab the IDT definition kext + patched AppleHDA kext as posted in the pack of my E6220 Sierra guide with no AppleHDA patches in the Clover config.plist. Check the DSDT too for HDEF device patch.



If you prefer to use Clover on-the-fly patches rather than pre-patched AppleHDA kext, the Sierra patch includes the following mods:

Find: 8419D411
Replace by: 00000000

Find: 8A19D411
Replace by: 00000000

Find: Replace by: 8B19D411
Replace by: E7761D11



Link to comment
