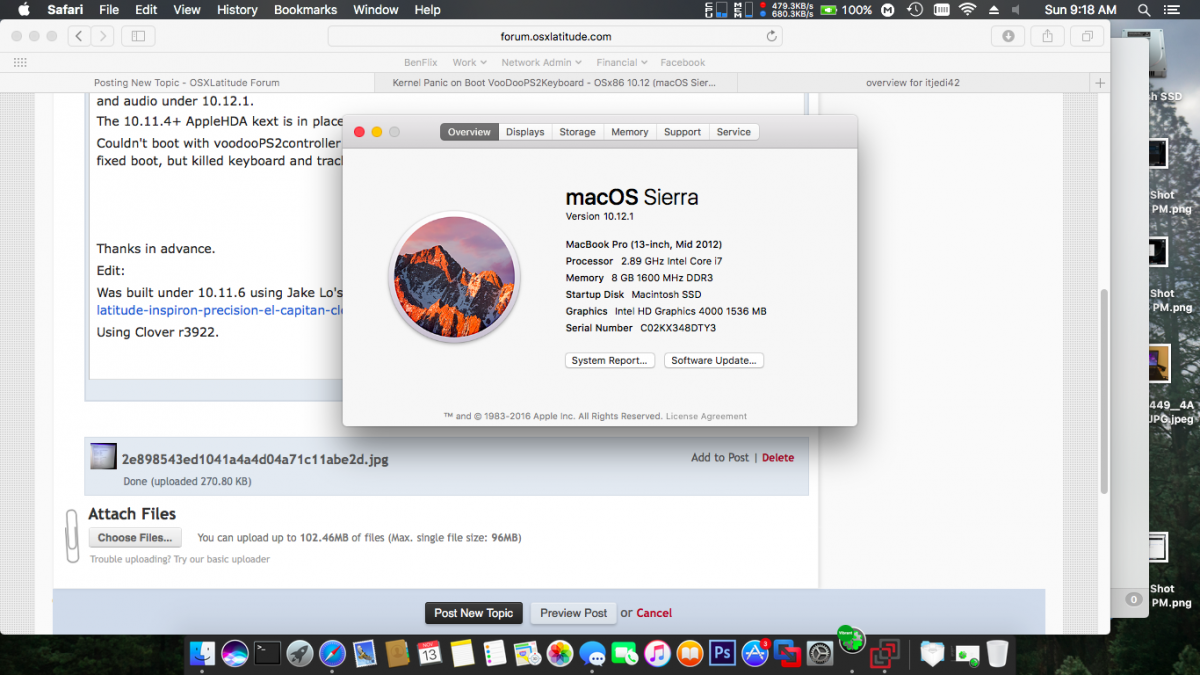

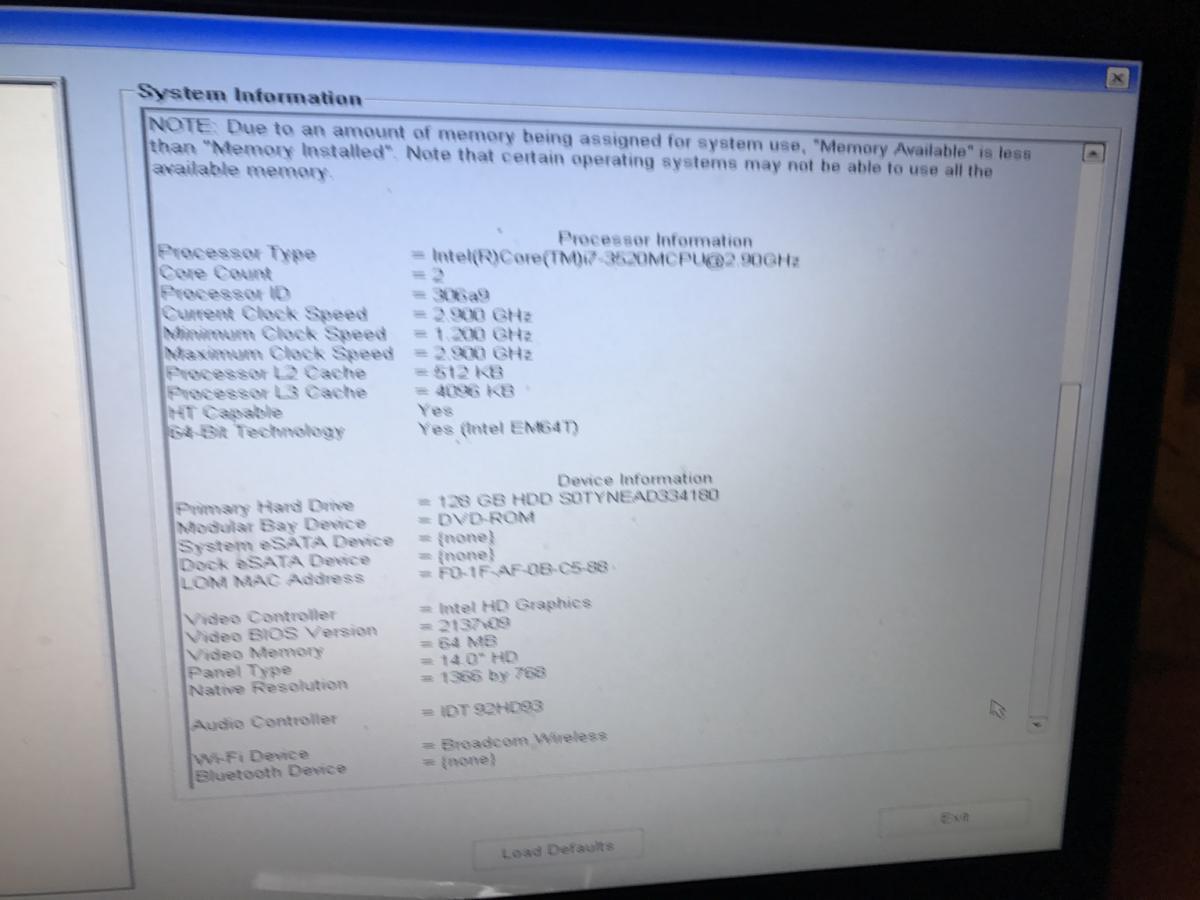

itjedi42 Posted November 13, 2016 Share Posted November 13, 2016 I have a Latitude 6430s that was working perfectly under 10.11.6. The only things not working are multitouch and audio under 10.12.1. The 10.11.4+ AppleHDA kext is in place in /L/E Audio patches are AppleHDA 8B19D411. DF761D11. AppleHDA IDT AppleHDA 8419D411. 00000000. AppleHDA IDT AppleHDA 8319D411. 00000000. AppleHDA IDT AppleHDA 9A19D411. 00000000. AppleHDA IDT Couldn't boot with voodooPS2controller (was using the only that previously worked on 10.11.6). Removing it fixed boot, but killed keyboard and trackpad. Using ApplePS2 now. Using Clover r3922. Thanks in advance. Was built under 10.11.6 using Jake Lo's guide here: https://osxlatitude.com/index.php?/topic/8506-dell-latitude-inspiron-precision-el-capitan-clover-guide/ updated using AppStore. Link to comment Share on other sites More sharing options...
Administrators Bronxteck Posted November 13, 2016 Administrators Share Posted November 13, 2016 I believe just yesterday Herve and Jake posted the solutions for someone with a E6430s audio and trackpad. check the forum. 1 Link to comment Share on other sites More sharing options...
Administrators Hervé Posted November 13, 2016 Administrators Share Posted November 13, 2016 Yup. Above patch is obsolete for Sierra and patched El Capitan AppleHDA will not work under Sierra. For VoodooPS2Controller, you're now supposed to use Dr Hurt's version; I recommend Release 4 on the E6xxx series and it's available in Dr Hurt's thread in R&D section or in my recent E6220/E6230 Sierra guides. For audio, the correct AppleHDA patch for IDT 92HD93 is: Find: 8419D411 Replace by: 00000000 Find: 8A19D411 Replace by: 00000000 Find: 8B19D411 Replace by: DF761D11 There are no instances of 8319D411 in Sierra's AppleHDA. The patched kext must go to /S/L/E; the IDT definition kext can go to /L/E. Repair permissions and rebuilt cache after your kexts modifications. 1 Link to comment Share on other sites More sharing options...
itjedi42 Posted November 13, 2016 Author Share Posted November 13, 2016 OK, so I tried those patches via Clover. Putting the AppleHDA_IDT (the one I had been using under 10.11.6) kext in /L/E. I get a KP when trying to boot. Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted November 13, 2016 Moderators Share Posted November 13, 2016 What's the KP? Try booting in verbose mode. Link to comment Share on other sites More sharing options...

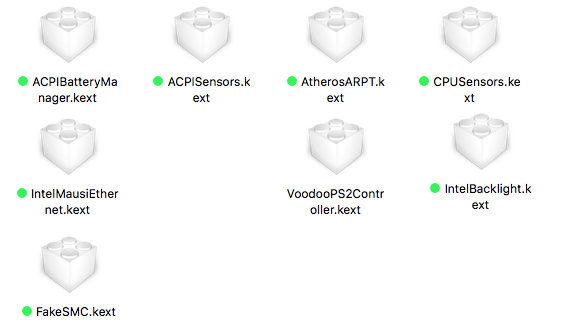

itjedi42 Posted November 13, 2016 Author Share Posted November 13, 2016 I believe I have also tried that voodoops2 kext with a similar KP issue. Here is whats in my /EFI/CLOVER/Kexts/Other folder. Possible theres a conflict? and not necessarily the AppleHDA_IDT or VoodooPS2controller.kext causing it? Edit: Ignore VoodooPS2controller.kext in screenshot, took the screenshot from the backup of EFI I took before upgrading to 10.12.1 Link to comment Share on other sites More sharing options...
Administrators Hervé Posted November 13, 2016 Administrators Share Posted November 13, 2016 You're gonna have to post a picture of your KP or tell us what it says... If you use Clover, make sure to select AsusAICPUPM or you'll get KP on CPU power management. That's mandatory on all Sandy Bridge and Ivy Bridge laptops. If you re-use the Clover config.plist from a previous version, the existing set of binary patches may also be the source of the KP. It'd be a good idea to post your complete EFI folder. Link to comment Share on other sites More sharing options...

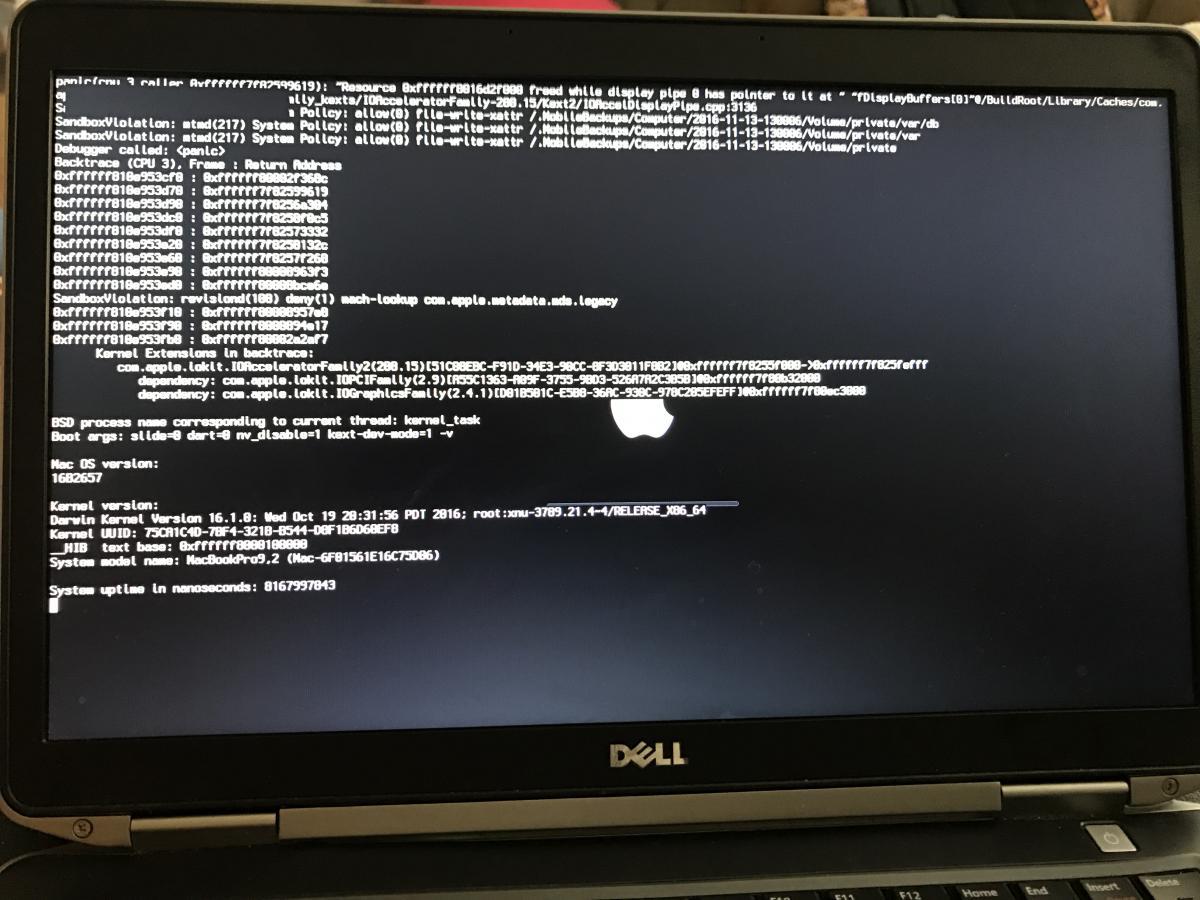

itjedi42 Posted November 13, 2016 Author Share Posted November 13, 2016 Here is the KP capture. This is with the values you gave me for patching. And the 10.11.4 AppleHDA_IDT.kext from the original guide in /L/E Link to comment Share on other sites More sharing options...
Administrators Hervé Posted November 13, 2016 Administrators Share Posted November 13, 2016 I think you've got an obsolete IOGraphicsFamily patch in your config.plist. I did ask your EFI folder, but... The IOGraphicsFamily patch for Sierra is: Find: 0100007525 Replace by: 010000EB25 1 Link to comment Share on other sites More sharing options...
itjedi42 Posted November 13, 2016 Author Share Posted November 13, 2016 (edited) Here is the EFI folder. Edit: I have updated the IOGraphicsFamily patch to what you just posted. (not shown in EFI folder) Edited November 16, 2016 by itjedi42 Link to comment Share on other sites More sharing options...
