JmW Posted March 13, 2020 Share Posted March 13, 2020 @Dell Dude Hey! Could you please share your clover efi please! I really want to make hackintosh in my lattitude 3400. Link to comment Share on other sites More sharing options...
davidfrei7as Posted March 13, 2020 Share Posted March 13, 2020 I was doing a lot of research on how to install mac os on my latitude 3400 and saw that you were successful. I'm new to this and I don't know where to start. Could someone tell me a step by step how to install from the beginning and what files do I have to download. Thank you very much in advance! Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted March 13, 2020 Moderators Share Posted March 13, 2020 You can follow my vanilla Catalina guide here including the BIOS settings Once you have Clover installed with the settings provided, add the attached contents to /EFI/Clover This should allow you to install and have a completely working system. Use the same Clover folder from the Installer for the installed drive when finished. Latitude 3400 Catalina.zip Link to comment Share on other sites More sharing options...

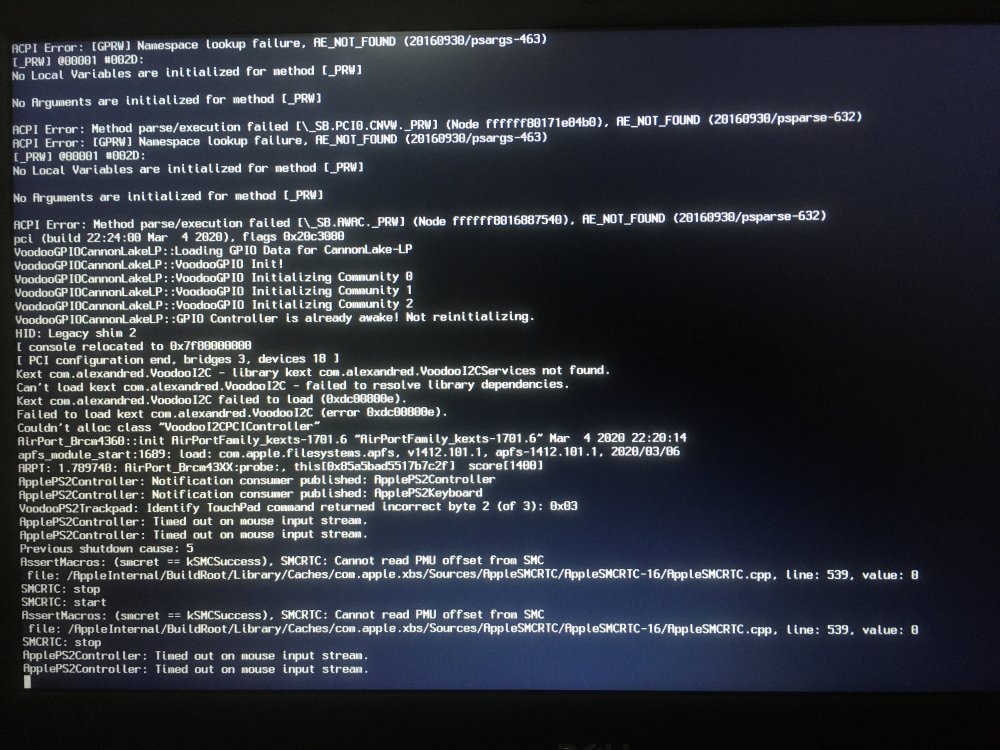

JmW Posted March 16, 2020 Author Share Posted March 16, 2020 Hi, I followed the guide but when I try to boot. It shows an error. Attaching the image. Please help. I really want to make make hackintosh in my 3400 latitude. Thanks! Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted March 16, 2020 Moderators Share Posted March 16, 2020 Did you use the bootpack I attached above? Because from the screenshot, the version of kexts are different from what I had attached. Link to comment Share on other sites More sharing options...
JmW Posted March 16, 2020 Author Share Posted March 16, 2020 I updated some of the kexts to see if I can fix this issue. Steps I followed were: 1. Made bootable Flash Drive using Catalina installer which I downloaded from the App Store on my VMWare running Mojave. 2. Installed the latest Clover (v2.5k R5103) on that Flash Drive and checked all drivers that you mentioned in your macOS Catalina installation guide. 3. Deleted the existing ACPI, Kexts and Config.plist folders in the EFI partition and replaced them with the files you provided above. 4. Booted from this Flash drive without adding any extra flags, that is when I got this error. Please let me know if I did something wrong here. Also, please clarify if I need to MERGE or REPLACE the files you provided in the EFI folder. Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted March 16, 2020 Moderators Share Posted March 16, 2020 @JmW Replace, don't merge. Link to comment Share on other sites More sharing options...
JmW Posted March 16, 2020 Author Share Posted March 16, 2020 I tried replacing as well but I still got the same error. I deleted the AHCI, Kext and Config.plist from EFI/Clover and then pasted your files there. Please refer to the image I posted in my previous post for the error message. Please help me with issue, I really want the setup to work on my laptop. Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted March 16, 2020 Moderators Share Posted March 16, 2020 Post your Clover folder to confirm if everything is set up correctly Link to comment Share on other sites More sharing options...
JmW Posted March 16, 2020 Author Share Posted March 16, 2020 Here are my clover settings. Thank You.Clover Settings.zip Clover Settings.zip Link to comment Share on other sites More sharing options...
