Hello EMlyDinEsh ! Thank you for all work here



I read your guide but Im a stupid guy so I cant understand all process... im stick on the nodes stuff.



Use your AppleHDA patched for Mountain Lion 1.8.2 but doesn't work for me (Its weird because I have alc 269 too, maybe the nodes and codes are not the same)



Could you please help me whenever you can if I give to you my codec_dump ?



Thank you a lot !!



Hi,



 Here is the patched AppleHDA according to your dump along with extracted verbs and nodes details for understanding.





20 - 13 - 3

SPK: 0x14 -> 0x0d -> 0x03 EAPD

10 01 13 90



33 - 12 - 2

HP: 0x21 -> 0x0c -> 0x02

40 10 21 03



27 - 35 - 8

MIC:0x1b-> 0x23 -> 0x08

30 01 a0 90



24 - 34- 9

EMIC: 0x18 -> 0x22 -> 0x09

20 90 81 03





01471c10 01471d01 01471e13 01471f90

01771cf0 01771d00 01771e00 01771f40

01871c20 01871d90 01871e81 01871f03

01971c00 01971d00 01971e00 01971f40

01a71cf0 01a71d00 01a71e00 01a71f40

01b71c30 01b71d01 01b71ea0 01b71f90

01d71cf0 01d71d00 01d71e00 01d71f40

01e71cf0 01e71d00 01e71e00 01e71f40

02171c40 02171d10 02171e21 02171f03 01470c02>



Let me know after testing this.

AppleHDA.kext.zip

Link to comment
Share on other sites

On 4/4/2013 at 9:43 AM, EMlyDinEsH said:
Get ioregfile saved using this app I'm sending from file menu and get the System log file from Console App in Utilities. Get these files after installing my AppleHDA.

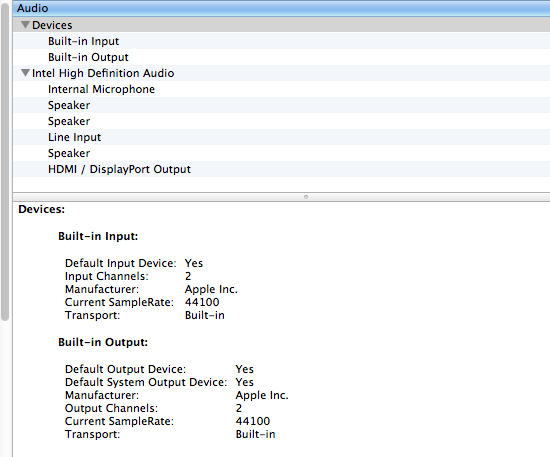

Hi Emlydinesh.  I finally got it to work. Wow i must have spent a month experimenting.  I found yet another thread of someone using same codec. He gave u credit for his success. So what I did is use his pin figs (just to try, did not think it would work cause only one matched??) i then entered my path maps id's cause they r different. I almost fell off my chair when I saw the speaker icon with bars  :o  :o  :D  :D after a reboot.  The only quirk is headphone must be used first to get sound output.  Internal speakers will work after that.  Also speaker slider bar is mute on first click but good after that. Maybe a tweak in pin figs or ID's will fix that. Auto audio detect works, mic seems to work, did not test external mic or hdmi.   A big thank you to u.  I really learned a lot from your thread




Link to comment
Share on other sites

Don't worry and give up, lets get this solved and I'll help you as much as I can. If the verbs aren't working then the pathmaps or some values in the layout file must be the issue. What is the error you get at System log during boot for AppleHDA?



Let me know so I can give you some standard Layout/Platforms files for experimenting. I think i've already did that in my post so you can try that one by following my guide else let me know and i'll help you with that.

Link to comment
Share on other sites

Hey EMlyDinEsH, I was trying to follow your guide to patch AppleHDA for my Samsung notebook, but I don't know what went wrong. I'm getting no output... And I can't follow the guide too much as its really complicated (or maybe its just me). Can you help me patch AppleHDA and my DSDT for Mountain Lion 10.8.3" Thanks! Attached are DSDT and codec dump...

codec_dump.txt

SRSR333_DSDT.zip

Link to comment
Share on other sites
