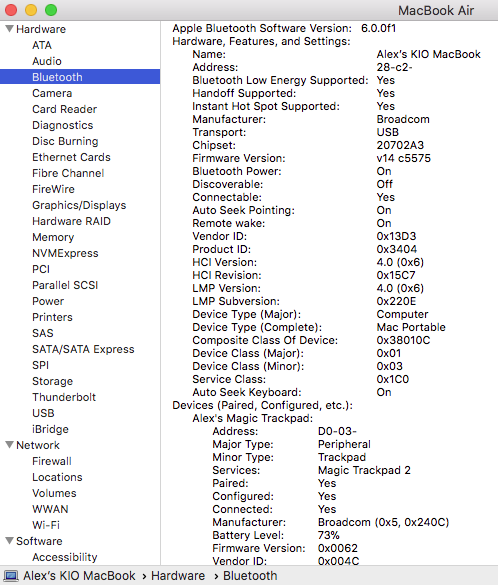

Alex Rivera Posted November 22, 2016 Share Posted November 22, 2016 I just upgraded my Wi-Fi from DW1510 to an AzureWave Broadcom BCM94352HMB/BCM94352 802.11/ac/867Mbps WLAN + BT4.0 Half Mini PCI-E Card.Speed Test (Internet..)Magic Trackpad 2 perfectly pairs and worksmacOS Sierra 10.12.1SMBIOS: MacBookAir6,2Working: 2.4GHz/5GHz (FCC/US) BT4LE - Handoff (I'm missing something here..) - BT Hotspot Shows as AirPort Extreme card type Handoff/Continuity is not completing but I think I'm missing something else... maybe iCloud configurations...Make sure you have your working bootable USB before proceeding.I've found patches from other sites like this.For BT injection use these kexts loaded in /S/L/E (rebuild kernel cache after install):BCM94352HCMB -BT Sierra 10.12.1.zipFor Wi-Fi injection and BT4LE Handoff/Hotspot all through Clover patches:Acpi (check these, make sure you don't get KP with your SMBIOS model) AddDTGP FixAirport Boot dart=0 kext-dev-mode=1 Devices (inject your device id) WIFI - 0x43a014E4Kernel and Kext Patches Name: AirPortBrcm4360Find: 410FB7CD39C1750C Replace: 410FB7CD39C16690 Comment: AirPortBrcm4360 - PCI Error 2 Name: AirPortBrcm4360Find: 837DC4047406 Replace: 837DC4046690 Comment: AirPortBrcm4360 - PCI Error 3 US/FCC Country Code A.K.A. 5GHz patch Name: AirPortBrcm4360Find: 81F952AA00007529 Replace: 81F952AA00006690 Comment: BMC94532Z NGFF (fvco) Card will show as an AirPort Extreme (cosmetic only) Name: AirPortBrcm4360Find: 6B100000750D Replace: 6B1000009090 Comment: Airport Extreme Name: AirPortBrcm4360Find: 4139C4751B Replace: 4139C46690 Comment: AirPortBrcm4360 - PCI Error 1 BT4LE, Handoff, Hotspot Name: IOBluetoothFamilyFind: 4885FF7447488B07 Replace: 41BE0F000000EB44 Comment: 10.11.dp1+ BT4LE-Handoff-Hotspot, credit RehabMan based on Dokterdok original That's it, I hope it helps those with the same Wi-Fi card model. 6 Link to comment Share on other sites More sharing options...
taddeusz Posted September 1, 2017 Share Posted September 1, 2017 I have one of these cards working on a Latitude E6420. I was wondering if you ever got Handoff/Continuity working? On my system they show the BT is capable of those functions but nothing happens when I try to do the Universal Clipboard. Other functions work fine like Airdrop. What I really would like to get working is the Apple Watch unlocking but it says that it cannot communicate with it. I decided to order a AW-CB160H/BCM94360HMB that will come next week but the U.FL to MHF4 adapter cables are shipping from China so they won't be here for a while. I'm hoping it will fix my Continuity issues but I thought I'd still try to troubleshoot my current card until then. Link to comment Share on other sites More sharing options...
Kjescha Posted October 13, 2017 Share Posted October 13, 2017 Hi, does AirDrop work with this card? Link to comment Share on other sites More sharing options...

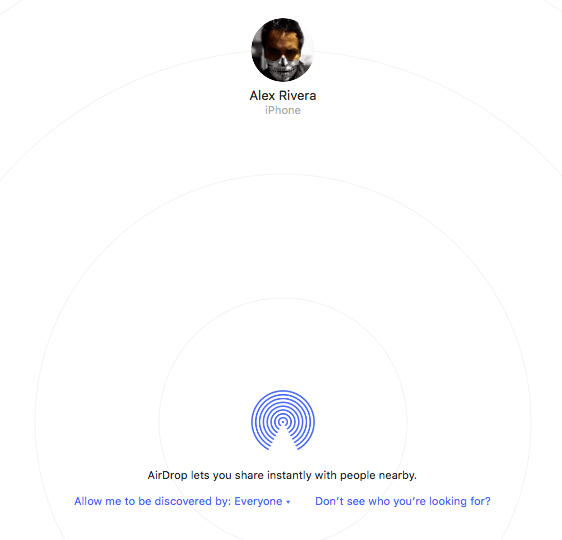

Schiller Posted November 8, 2017 Share Posted November 8, 2017 macOS High Sierra 10.13.1 AirDrop is working with this card, and it's really fast I have one of these cards working on a Latitude E6420. I was wondering if you ever got Handoff/Continuity working? On my system they show the BT is capable of those functions but nothing happens when I try to do the Universal Clipboard. Other functions work fine like Airdrop. What I really would like to get working is the Apple Watch unlocking but it says that it cannot communicate with it. I decided to order a AW-CB160H/BCM94360HMB that will come next week but the U.FL to MHF4 adapter cables are shipping from China so they won't be here for a while. I'm hoping it will fix my Continuity issues but I thought I'd still try to troubleshoot my current card until then. Handoff / Continuity is active in my system but I never got them working: I see iPhone's safari web page in macOS dock (same with notes, messages, etc) But I can't really open it: Notes: Universal clipboard doesn't work for me either. Link to comment Share on other sites More sharing options...
Schiller Posted November 10, 2017 Share Posted November 10, 2017 BTW for macOS High Sierra 10.13 things changed and the previous inject methods are not working like before, at least for me. After High Sierra update WiFi was working, BT more or less, I had a "Third Party Wireless Card" instead of Airport Extreme. AirDrop, hotspot, handoff, etc weren't working either. So here's a mini guide, things get simpler with these steps : You need latest Lilu (requires v1.2.0) and load AirportBrcmFixup to /EFI/CLOVER/kexts/10.13/ Clover AirPortBrcm4360 kext patches are no longer needed with AirportBrcmFixup.kext so remove or disable them. You still need to inject BT as before, in my case I'm using BrcmFirmwareRepo.kext and BrcmPatchRAM2.kext in /S/L/E Also keep the previous Clover options active such as: ACPI > Fixes > AddDTGP ACPI > Fixes > FixAirport Devices > Fake ID > WIFI = 0x43a014E4 Have fun and pair those 4.0 bluetooth devices you love while streaming music, movies, etc Link to comment Share on other sites More sharing options...
cc333 Posted February 15, 2018 Share Posted February 15, 2018 Hi, I'm trying to install one of these in my "HackBook Pro" (Dell Precision M6800 running macOS Sierra 10.12.6), and so far, I have gotten Bluetooth apparently working, but no WiFi. I have applied the patches listed on the first post to no avail. AirportBrcmFixup.kext apparently has no effect either. Any ideas? c Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted February 15, 2018 Moderators Share Posted February 15, 2018 add the following kexts to /Library/Extensions, repair permission and rebuild cache FakePCIID FakePCIID_Broadcom_WiFi You can skip these 4 patches with the latest FakePCIID above Name: AirPortBrcm4360 Find: 4139C4751B Replace: 4139C46690 Comment: AirPortBrcm4360 - PCI Error 1 Name: AirPortBrcm4360 Find: 410FB7CD39C1750C Replace: 410FB7CD39C16690 Comment: AirPortBrcm4360 - PCI Error 2 Name: AirPortBrcm4360 Find: 837DC4047406 Replace: 837DC4046690 Comment: AirPortBrcm4360 - PCI Error 3 Card will show as an AirPort Extreme (cosmetic only) Name: AirPortBrcm4360 Find: 6B100000750D Replace: 6B1000009090 Comment: Airport Extreme Link to comment Share on other sites More sharing options...
cc333 Posted February 15, 2018 Share Posted February 15, 2018 OK, I did that, and it still doesn't work. c Link to comment Share on other sites More sharing options...
cc333 Posted February 17, 2018 Share Posted February 17, 2018 I tried another thing, FakePCIID.kext and FakePCIID_Broadcom_WiFi.kext, plus something called the fcvo patch. No change. I installed 10.12.6 and the 2018-001 security update. Could that be causing any problems? The update wasn't seamless (a kernel panic caused by an old Lilu.kext (1.2.0), which I fixed by updating it to a newer version (1.2.2)), but I got it sorted out and everything's solid once again. Except WiFi, of course. EDIT: I figured it out! When applying the fcvo patch, I needed to tell it to patch "com.apple.driver.AirPort.Brcm4360" instead of "AirPortBrcm4360." c Link to comment Share on other sites More sharing options...
Administrators Bronxteck Posted February 17, 2018 Administrators Share Posted February 17, 2018 hmm the lilu brcm plugin has the fcvo patch built in Link to comment Share on other sites More sharing options...
