mariolasagna Posted March 2, 2018 Share Posted March 2, 2018 Hi there. Now that I was able to install High Sierra on my old E5430 I would like to do the same with a 7480. Running Windows 10 on this machine makes feel sad. Have you guys seen any procedure to install High Sierra on 7480? Thank you. Mario. Link to comment Share on other sites More sharing options...
Administrators Bronxteck Posted March 2, 2018 Administrators Share Posted March 2, 2018 no there is not one at the moment but search the forum there are a few "works in progress" maybe some of there info can help you along Link to comment Share on other sites More sharing options...
seeker_pl Posted April 13, 2018 Share Posted April 13, 2018 I will try to help you. Thanks to @Jake Lo I have almost fully working Dell Latitude 7480 with latest High Sierra installed. If you still need help, let me know I will try help you with the installation and basic configuration. I cannot help you with ACPI tables you will need to ask someone else from the forum for help. Link to comment Share on other sites More sharing options...
catmater Posted April 13, 2018 Share Posted April 13, 2018 Helo, i have same NB, 7480, and almost get all working, but cant do touchpad to work. this is insane i2c touchpad, no luck with it. And sound ALC264 is too low, and mic dont work properly. can you post you EFI folder ? Here is my config Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted April 14, 2018 Moderators Share Posted April 14, 2018 Made a couple of changes to your DSDT, see if touchpad works. If not, try replacing VoodooPS2Controller with the attached VoodooPS2Controller.kext.zip DSDT.aml Link to comment Share on other sites More sharing options...
catmater Posted April 14, 2018 Share Posted April 14, 2018 Helo, Jake Lo! Fanx for you help, but steel no luck. with patched DSDT - touch not work, and internal keyboard are switched off. With patched DSDT and PS2 kext (btw, why PS2? TP in i2C bus - DLL07A0 , TPD1) keyboard worked, but TP is not. P.S. TP work fine under Win10, Debian, Ubuntu... P.P.S. DSDT in my config already patched for i2c TP, may be in this trouble. Here is clear orign actual files. P.P.P.S. Then i press to TP - keyboard are illuminate, but mousepointer do not move, key not work, and e.t.c. Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted April 14, 2018 Moderators Share Posted April 14, 2018 HD520 or HD620? PS2 is for the keyboard. I2C is for the touchpad Your DSDT was missing the GPIO Controller patch Link to comment Share on other sites More sharing options...
catmater Posted April 14, 2018 Share Posted April 14, 2018 HD620. Here is my debug Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted April 14, 2018 Moderators Share Posted April 14, 2018 Why did you remove the VoodooI2C kexts? Try this, replace Config & DSDT/SSDT Add all kexts to /EFi/Clover/kexts/Other but AppleBacklightInjector.kext goes into /L/E Repair permission and rebuild cache 7480_catmater.zip Link to comment Share on other sites More sharing options...

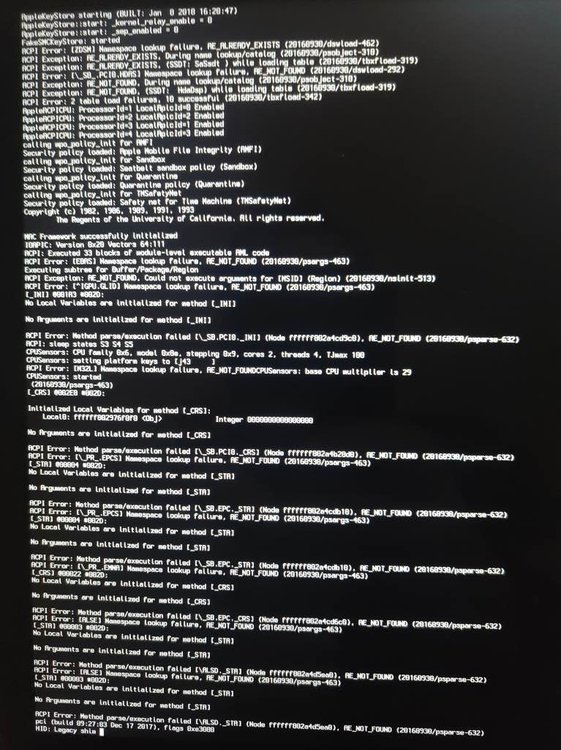

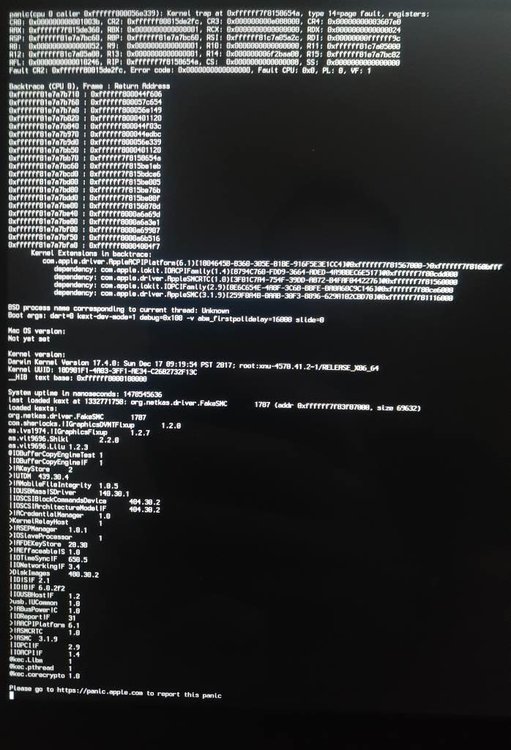

catmater Posted April 14, 2018 Share Posted April 14, 2018 fanx for try to help me! (i2c remove temporality, foк testing). Try to use you config, but no luck. Do it : conf and kexts into EFI, (AppleBacklightInjector.kext put into /L/E ), rebuild cache, reboot and got KP. with you files and conf - got CPU KP. with you files my conf - got ACPI KP revert to my conf, you kexts and my dsdt Here is a new debug , with you kexts debug_120.zip Link to comment Share on other sites More sharing options...
