Installing/upgrading to Mojave - Optiplex 9020 (HD4600)

[naulaksan]

Hi Good People.



Can you please make a guide on fresh install or upgrade to Mojave on a Dell Optiplex 9020.

[morpheousman]

Hmm, I was just about ask, anyone upgrade to Mojave yet? Wonder if we get lucky and it solves sleep issue in High Sierra.

[Hervé]

Mojave is installed using the same process used for High Sierra.

[naulaksan]

Will an upgrade (with the same EFI folder contents from HS) just work?

[Bronxteck]

most likely if not it might just need minor tweaks.

[naulaksan]

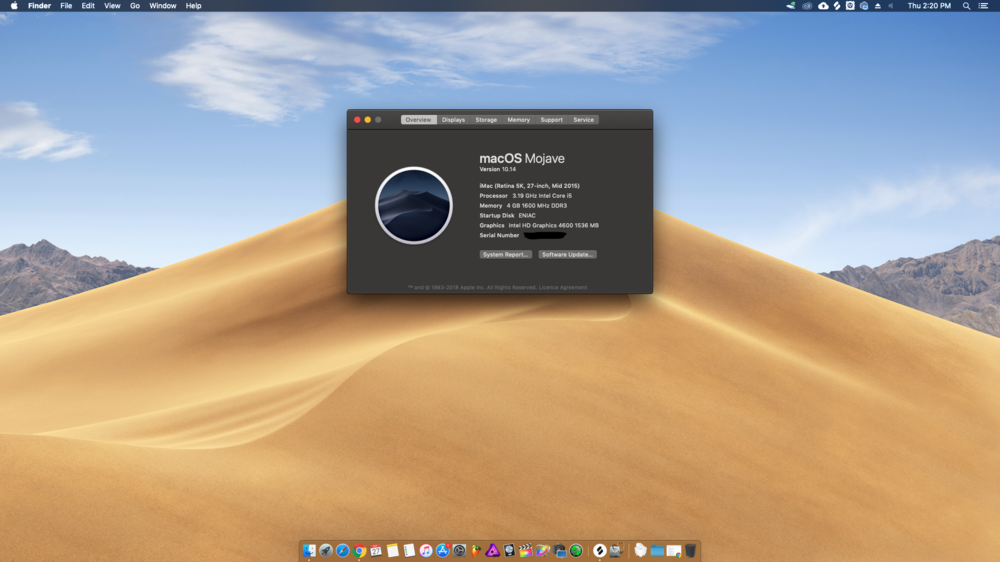

Got it to work!

1- Updated Clover to the latest (r-4674)

2- Downloaded Mojave

3- Updated the Fake SMC, Lilu and AppleALC

4- Started installation

5- Coped all kexts from EFI and pasted to L,E

6- Ran these commands in terminal

      sudo chmod -Rf 755 /L*/E*

      sudo chown -Rf 0:0 /L*/E*

      sudo touch -f /L*/E*

      sudo chmod -Rf 755 /S*/L*/E*

      sudo chown -Rf 0:0 /S*/L*/E*

      sudo touch -f /S*/L*/E*

      sudo kextcache -Boot -U /

7- Rebooted. everything works including audio(only front jack)



My Config : i5 4570 using IGPU - mechanical HDD

[naulaksan]

Need help removing these two boot options:







[Jake Lo]

In Config file, under GUI/Hide Volume, add this

Preboot



If you're using AppleALC.kext, change layout-id to 15, you'll get the rare audio Jack working too. You just have to manually select it in preferences.



[naulaksan]

Successfully removed the additional boot options. Rear Audio as well works.



Thank you so much Jake Lo

[morpheousman]

I've just did a Mojave install as well. I could not get installer to boot in UEFI, so I got impatient, and installed it in legacy mode. First boot, no sound, so I have some reading and tweaks to do. Probably will go with Apple.ALC. Setup will take a bit longer on this standard HD drive.  I don't have a spare SSD to test with at the moment.



Sleep is working if I manually put it to sleep. I will do some more testing.
