sebus Posted March 4, 2016 Author Share Posted March 4, 2016 No difference. Hangs in very same place sebus Link to comment Share on other sites More sharing options...
Administrators Bronxteck Posted March 4, 2016 Administrators Share Posted March 4, 2016 have you tried to boot in safemode or without caches? Link to comment Share on other sites More sharing options...
ioncatana Posted August 23, 2016 Share Posted August 23, 2016 Hi guys, First I want to thank OSX-Latitude, they have guided me many years now on my way to build the perfect Hackintosh. I dont know if u still need this information, but I have managed to create a USB with El Capitan and configured Clover for Optiplex 3020. Now I am installing the 10.11. Do you want me to upload the EFI-Config files? Cheers Link to comment Share on other sites More sharing options...
Administrators Hervé Posted August 23, 2016 Administrators Share Posted August 23, 2016 Please do, I'm sure that can be of interest to other people. Post your zipped EFI folder with patched DSDT, Clover Config.plist and add-on kexts. Link to comment Share on other sites More sharing options...

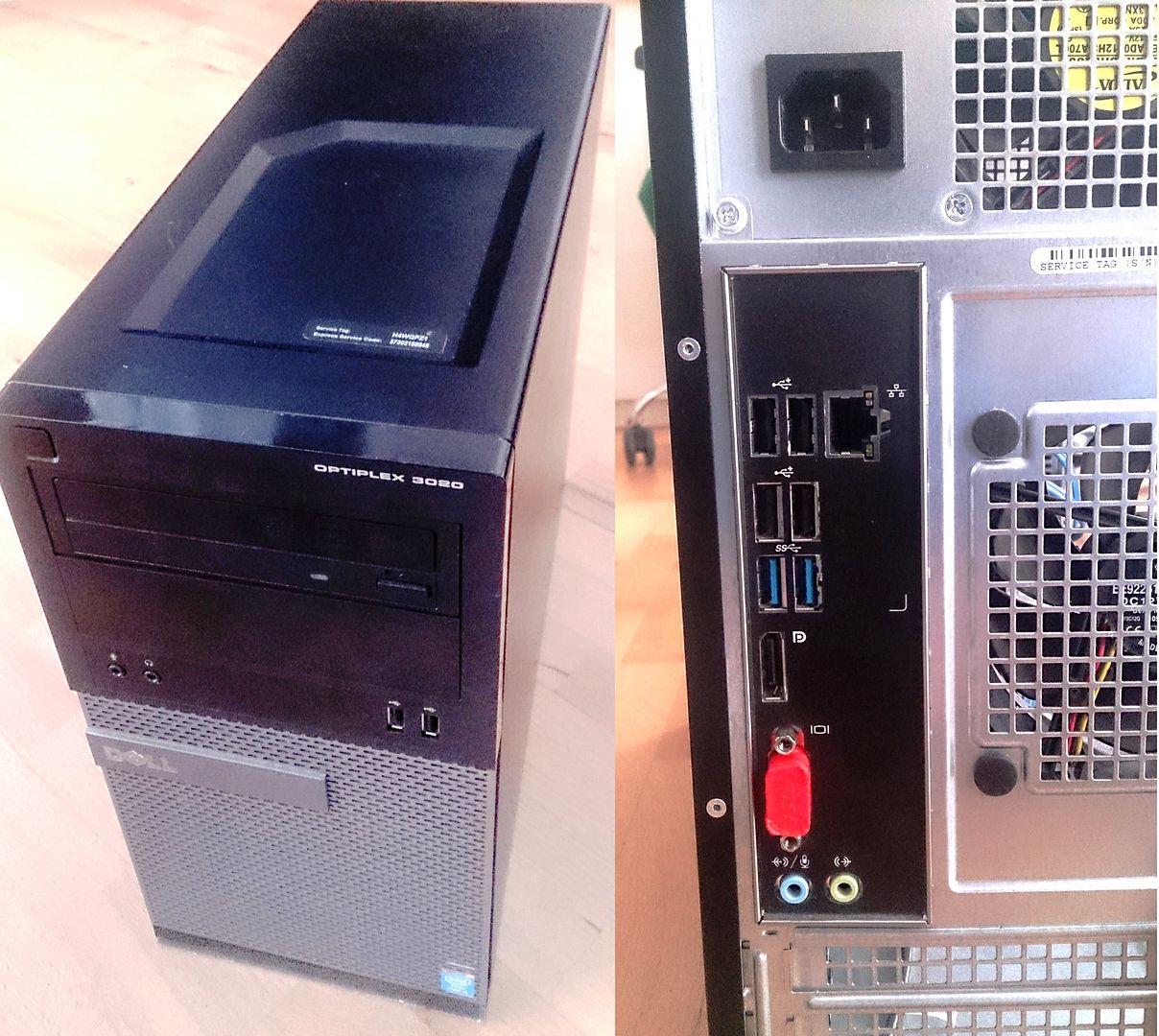

ioncatana Posted August 23, 2016 Share Posted August 23, 2016 Hardware configuration (more details are in the attachment / generated with HwInfo64)CPU: Intel Core i5-4570Audio: RealTek ALC280 / PCI\VEN_8086&DEV_8C20Video: Intel HD Graphics 4600 / Haswell GT2 / PCI\VEN_8086&DEV_0412 (Desktop) - no QE/CI( Optional Video2: HD Radeon 5450 / Full QE/CI )Target OS X version: 10.11.5 / 10.11.6 >>BIOS-Settings<< +General ++System Information Bios-Version: A10 CPU: i5-4570 Video-Controller: Intel HD Graphics AudioController: RealtTek ALC3220 ++Boot Sequence Boot List Option: UEFI ++Advanced Boot Options Enable Legacy Option ROMs: TRUE +System Configuration ++Integrated NIC: Enabled ++SATA Option: AHCI ++Audio Enable Audio: TRUE +Video ++Primary Display: Intel HD Graphics +Secure Boot ++ Secure Boot Enable: Disabled +Performance ++MultiCore: All ++C-State Control: TRUE ++Limit CPUI Value: FALSE ++Intel TurboBoost: FALSE +Virtualization Support ++ Virtualization: TRUE How to install El Capitan 10.11.6 on Dell Optiplex 3020 MT >>I. Prerequisites<< Runnig Mac or Hackintosh Bootable USB-Stick with El Capitan 10.11 Dell Optiplex 3020 ( see my configuration Dell-Optiplex-3020.html extracted with HwInfo ) Display Port to DVI Connector or Display Port to VGA Connector ( THE VGA on Board will not work! ) config.plist + DSDT.aml + kext 10.11 + VoodooHda-2.8.8 >>II. Creating Bootable USB-Stick for 10.11 El Capitan<< Thx to Jake Lo there is a very nice tutorial on how to create a bootable USB-Stick with El Capitan Follow Jake Lo’s guide “1. Prepare Bootable USB Drive†After the USB-Creation is finished, you need to copy some files to the EFI Folder of the USB-Stick in order to be able to boot properly from the Installation-Stick Copy DSDT.aml into “EFI/CLOVER/ACPI/patched†( the SSDT-7.aml you will generate later in the 3. Post-Installation step ) Copy the KEXT files into “EFI/CLOVER/kexts/10.11†and also into “EFI/CLOVER/kexts/Other†Copy config.plist into “EFI/CLOVER/†>>III. Installing OS from the USB-Stick<< Follow Jake Lo's tutorial: “2: Install OS X El Capitan†and “3: Post-Installationâ€. After all is done, install VoodooHda-2.8.8 to enable sound Dell-Optiplex-3020.htm config.zip DSDT+SSDT.zip kext_10.11.zip VoodooHDA-2.8.8.pkg.zip 4 Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted August 24, 2016 Moderators Share Posted August 24, 2016 You only need to inject fakeID 0x04128086 for mobile HD 4600/HD 4400. Remove the fakeID and use only ig-platform-id = 0x0d220003 should get you full QE/CI. I have similar config for the Optiplex 9020. Could you also include the BIOS settings? I tried to help sebus some times ago but he was not successful, not sure if it's BIOS setting the issue. 1 Link to comment Share on other sites More sharing options...
ioncatana Posted August 24, 2016 Share Posted August 24, 2016 I have tried the following Clover settings with the Intel HD 4600: a) IntelGFX: 0x01428086 / ig-platform-id: 0x0d220003 / InjectIntel: TRUE => right after "PPGTT is enabled" comes the black screen IntelGFX: <empty> / ig-platform-id: 0x0d220003 / InjectIntel: TRUE => right after "PPGTT is enabled" comes the black screen c) IntelGFX: <empty> / ig-platform-id: 0x0d220003 / InjectIntel: FALSE => stuck at "PPGTT is enabled" ( so no black screen appears ) d) IntelGFX: <empty> / ig-platform-id: <empty> / InjectIntel: TRUE => right after "PPGTT is enabled" comes the black screen e) IntelGFX: 0x01428086 / ig-platform-id: <empty> / InjectIntel: TRUE => right after "PPGTT is enabled" comes the black screen f) IntelGFX: 0x11428086 / ig-platform-id: <empty> / InjectIntel: TRUE => works without QE/CI ( IMPORANT: the GFX-id is a non existing id, u can take anything you like, it works also with 0xABCD8086, where ABCD is a non existing ID ) Probably the Azul-Kext file needs a patch for the 10.11.5 Any help in this matter is really appreciated Link to comment Share on other sites More sharing options...
Administrators Hervé Posted August 24, 2016 Administrators Share Posted August 24, 2016 Correct me if I'm wrong or aren't all your above ids incorrect? Desktop HD4600 is vendor 8086 (Intel) -not 8085- and device 0412. As such, I believe the IntelGFX parameter should have been set to 0x04128086. No Azul FB kext patching would normally be required to get QE/CI unless the default ports do not support/match your rig of course (but I'd be surprised). Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted August 24, 2016 Moderators Share Posted August 24, 2016 Go with B and you'll need to remove the ATI card. On my 9020, I used the Displayport. What connection does your 3020 have? Try replacing your _DSM Method under IGPU in SSDT-7 with this Method (_DSM, 4, NotSerialized) // _DSM: Device-Specific Method { If (LEqual (Arg2, Zero)) { Return (Buffer (One) { 0x03 }) } Return (Package (0x08) { "device-id", Buffer (0x04) { 0x12, 0x04, 0x00, 0x00 }, "AAPL,ig-platform-id", Buffer (0x04) { 0x03, 0x00, 0x22, 0x0D }, "hda-gfx", Buffer (0x0A) { "onboard-1" }, "model", Buffer (0x0E) { "Intel HD 4600" } }) } Link to comment Share on other sites More sharing options...

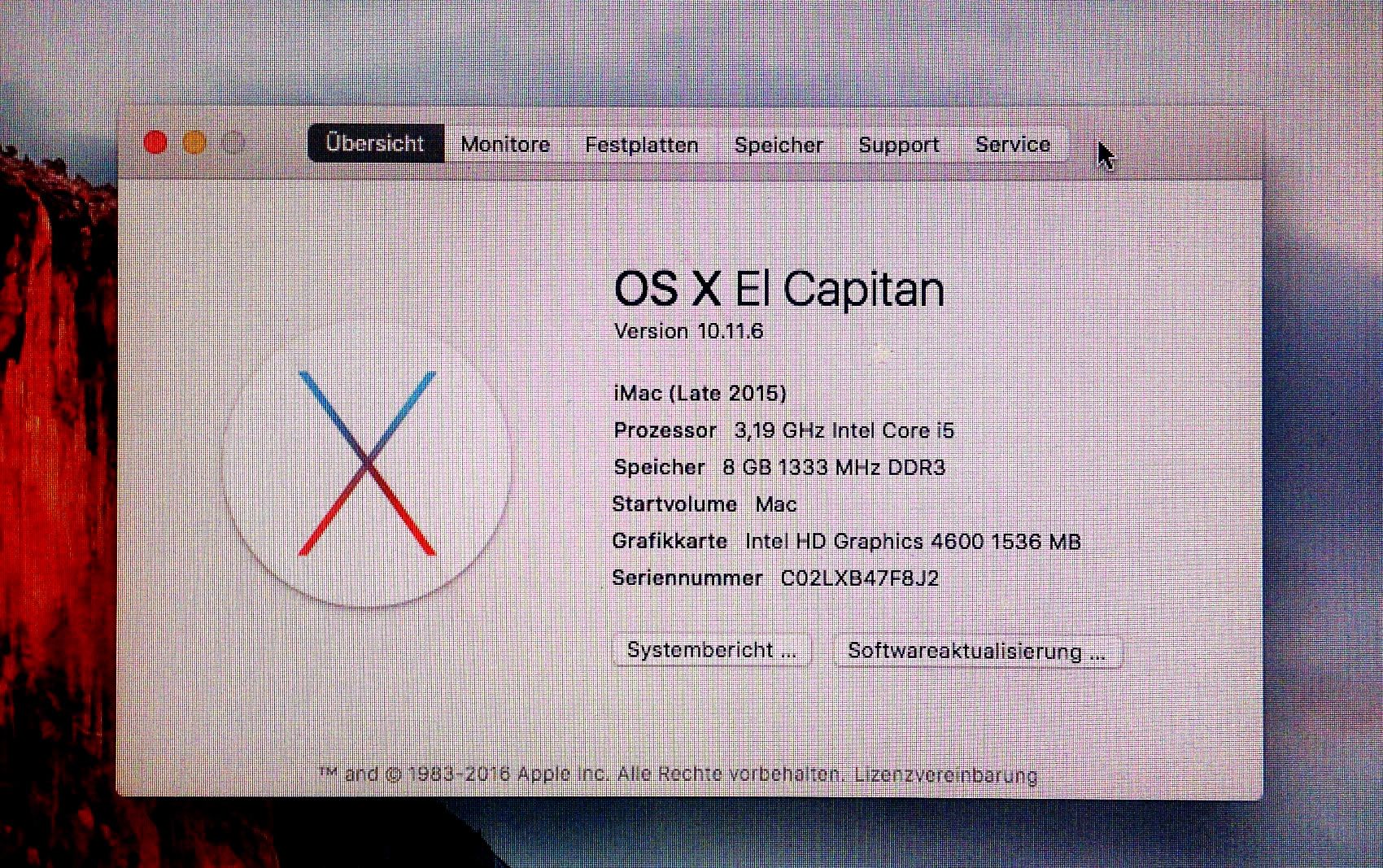

ioncatana Posted August 24, 2016 Share Posted August 24, 2016 Thank you Herve & Jake Lo for the support! It was the bloody VGA connector Yes it works with option and Displayport I have updated with success to 10.11.6 Everything works now Display, Audio, Ethernet Will upload the latest EFI-Config! Link to comment Share on other sites More sharing options...
