EMlyDinEsH Posted June 20, 2014 Author Share Posted June 20, 2014 yes, i'm use your kext, add my id's in kext. You mean my card work absolute native only with FakeID for wifi? p.s. sorry for my english http://cl.ly/3K2V2I1h133l - IOReg upd. have mistake this vid & pid (VID: 0x13d3 PID: 0x3295) from over module (bcm 943225hmb), vid & pid from bcm 94352hmb i can't find. Yes, your Bluetooth (VID: 0x13d3 PID: 0x3295) will work with fake id to bluetooth kext and doesn't require my kext. Link to comment Share on other sites More sharing options...

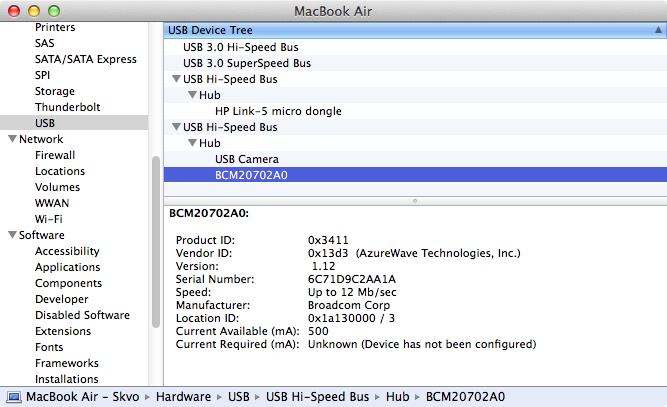

Skvo Posted June 21, 2014 Share Posted June 21, 2014 Bought AzureWave AW-CE123H (bcm94352hmb), was a new version (VID=13d3, PID=3411) BTFirmwareUploader v2.4 - does not recognize the module.Added values ​​manually - everything was working without any problem .. EMlyDinEsH, add new ID in the next version kext. Thank you... P.S: In the first post wrong. Identifiers confused. In the quotation highlighted in red: Supported Bluetooth Vendor and Product ID:Broadcom:VID: 13d3 PID: 3404 (Azurewave)VID: 0b05 PID: 17cf (Asus)VID: 413c PID: 8143 (Dell)VID: 04ca PID: 200a (LiteOn)VID: 04ca PID: 200b (LiteOnVID: 04ca PID: 200c (LiteOn) VID: 04ca PID: 200c (HP) VID: 04ca PID: 200c (Toshiba NGFF) Link to comment Share on other sites More sharing options...
EMlyDinEsH Posted June 24, 2014 Author Share Posted June 24, 2014 Bought AzureWave AW-CE123H (bcm94352hmb), was a new version (VID=13d3, PID=3411) Снимок Ñкрана 2014-06-21 в 17.00.22.png BTFirmwareUploader v2.4 - does not recognize the module. Added values ​​manually - everything was working without any problem .. EMlyDinEsH, add new ID in the next version kext. Thank you... P.S: In the first post wrong. Identifiers confused. In the quotation highlighted in red: Yep, I'll add your id in the next minor update and thanks for showing the wrong id values in the post. Link to comment Share on other sites More sharing options...
EMlyDinEsH Posted June 24, 2014 Author Share Posted June 24, 2014 yes, i'm use your kext, add my id's in kext. You mean my card work absolute native only with FakeID for wifi? p.s. sorry for my english http://cl.ly/3K2V2I1h133l - IOReg upd. have mistake this vid & pid (VID: 0x13d3 PID: 0x3295) from over module (bcm 943225hmb), vid & pid from bcm 94352hmb i can't find. Do you have BCM4352 wifi card? Your ioreg file is corrupted as you have used new version of IORegistryExplorer, so try to use IORegistrExplorer version 2.1 or lower and send me your ioreg without my kext installed and cold boot. Link to comment Share on other sites More sharing options...
neorfey Posted June 25, 2014 Share Posted June 25, 2014 Do you have BCM4352 wifi card? Your ioreg file is corrupted as you have used new version of IORegistryExplorer, so try to use IORegistrExplorer version 2.1 or lower and send me your ioreg without my kext installed and cold boot. http://cl.ly/2p2e3s2B3F0O - IOReg Link to comment Share on other sites More sharing options...
Skvo Posted June 26, 2014 Share Posted June 26, 2014 http://cl.ly/2p2e3s2B3F0O - IOReg Install a module in Acer V3-571g? If yes, then tape pin #51 on BCM94352HMB. Theory: http://www.pcisig.com/specifications/pciexpress/specifications/ECN-Second20Wireless20Disable20-2020100510.pdf Practice: p.s. sorry for my englishOriginal article in your own language: https://applelife.ru/threads/broadcom-bcm94352hmb-novyj-flagman-sredi-kombomodulej-s-podderzhkoj-802-11ac.41855/page-3#post-445743 1 Link to comment Share on other sites More sharing options...
EMlyDinEsH Posted June 27, 2014 Author Share Posted June 27, 2014 http://cl.ly/2p2e3s2B3F0O - IOReg Your Bluetooth hardware is not detected in ioreg which means its not installed properly. Follow the user "Skvo" post for details about the your card installation. 1 Link to comment Share on other sites More sharing options...
hamoodaslam411 Posted June 29, 2014 Share Posted June 29, 2014 Install a module in Acer V3-571g? If yes, then tape pin #51 on BCM94352HMB. Theory: http://www.pcisig.com/specifications/pciexpress/specifications/ECN-Second20Wireless20Disable20-2020100510.pdf Practice: 163148_6e570d2c9c40b7ca258e43c265734760.jpg Original article in your own language: https://applelife.ru/threads/broadcom-bcm94352hmb-novyj-flagman-sredi-kombomodulej-s-podderzhkoj-802-11ac.41855/page-3#post-445743 Skvo, I have the same Azurewave BCM94352HMB card, I had previously taped pin 20 to bypass the whitelist and get the wifi working (toshiba laptop), but I have never been able to work the bluetooth on this card, had tried taping out pin 51 (along with pin 20), no joy. Just so there is no confusion on my side, should I be taping only pin 51 or both (51&20). Also can you suggest any thing else I can try, as my last resort would be to edit the bios, easier said than done. Any help would be greatly appreciated. Thank You Hamood Link to comment Share on other sites More sharing options...
neorfey Posted June 30, 2014 Share Posted June 30, 2014 Skvo, EMlyDinEsH so many thanks Link to comment Share on other sites More sharing options...
hamood Posted July 2, 2014 Share Posted July 2, 2014 Skvo, EMlyDinEsH so many thanks Neorfey, I have a similar card as yours, but even after taping out pin 20 & 51, I can only work the wifi, no bluetooth. would you be kind enough to upload your edited (with the vendor and product id) BTfirmwareuploader kext along with your bluetooth kext for mavericks. I would like to give them a try. Your help will be greatly appreciated. Thanks Hamood Link to comment Share on other sites More sharing options...
