First big thx. to osxlatitude!


I have now a new Machine, and I am quite far with the installation. I have installed the Mac OS 10.11.6 so far and I still need some input from you guys:





CPU: Intel Core i5-4200M

Chipset: Intel HM87 Express Chipset / PCI\VEN_8086&DEV_8C4B

RAM: 8 GB DDR3 1600 MHz

Graphics: HD Graphics 4600 ( Intel Haswell-MB GT2 ) / PCI\VEN_8086&DEV_0416

Ethernet: RealTek Semiconductor RTL8168/8111 PCI-E Gigabit / works OOB

Audio: Realtek ALC3661 ( VoodooHDA doenst work -> kernel panic )

WiFi: Atheros/Qualcomm AR9565 Wireless Network Adapter / needs patch

Bluetooth: Works OOB



Jake Lo is right, the Audio is also regarding the realtekALC-100-script: ALC668


>>What is working<<

Graphics: QE/CI works with FakeID-Injection (+kext files) / still the image in the upper left corner looks a bit fuzzy :(

Ethernet: OOB

WiFi: kext Injection / pci168c,36

Bluetooth: OOB

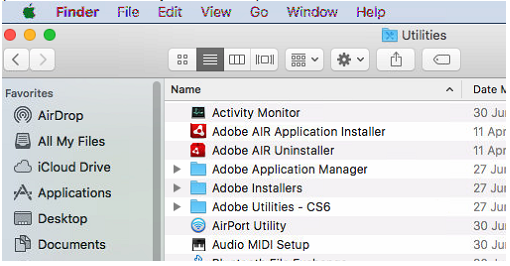

(normal window with fuzzy text in the bar)

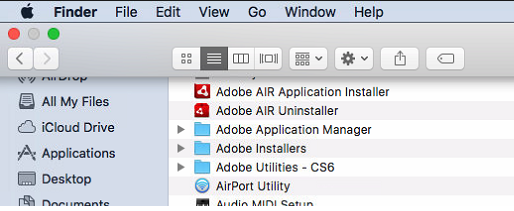

(fullscreen window and the text in the bar shows correctly)




I have uploaded the DSDT ( original & patched ) together with the config.plist and the HWINFO64 extraction of the machine.


In the mean time I will check the other hardware parts to make them work: WiFi + Sound


Thank you in advance!






Link to post
Share on other sites
  • Administrators

You can look at my E6440 guide re: HD4600 support.


Basically, you need to:

  1. inject or fake desktop HD4600 id 0412 (because OS X does not support mobile version with id 0416)
  2. inject Azul layout-id 0x0a260006
  3. install or inject Rehabman's FakePCIID + FakePCIID_Intel_HD_Graphics kexts. Add FakePCIID_Intel_HDMI_Audio kext if you want/need HDMI audio too. HDMI audio will require the HDAU device in DSDT.


I recommend that you patch your DSDT to inject HD4600 desktop id + layout-id and adjust HDEF+HDAU devices. All this is detailed in the E6440 guide. Injection can be done through Clover and I guess that's what you're using.

  • Like 1
Link to post
Share on other sites

I have been trying  all your suggestions regarding the Graphiccard, the only one that worked was from Herve. I have full QE/CI now, the only problem is that the bar in the top left corner ( the apple logo ) looks very fuzzy :( will upload images


Is there any solution for the Audio to make it work? AppleHDA injection/patch for ALC3661?



Link to post
Share on other sites

We'll need all the DSDT/SSDT in the Origin folder to be able compile it successfully. Please compress and attach the /EFI/Clover/ACPI/Origin folder


The folder "origin" is empty. Do you want me to extract the DSDT + SSDT from Windows and attache it here?

Link to post
Share on other sites
