Baio77

Test this EFI in USB , if start ioreg https://drive.google.com/drive/folders/1sZ2MgJ6_H_G4waghOgm5WPjAfS9RqRXE?usp=sharing

Insert in EFI<OC<Kext Usbinjectall.kext , you also call it in configplist. Use OCAuxilaryTools to manage EFI and configplist. When you have fixed the EFI start the PC and open Hackintool, disconnect all the USB from the PC and click broom then refresh. Take a screenshot of the image displayed after scoping refreshnow you can perform USB port mapping. If you have problems after sweeping and refreshing, click here and place the kext USBMap here ONLY.

Test this EFI , if start ioreg https://drive.google.com/drive/folders/17w5i7XgQNgqxX9-bywlnsgBPTpOg0T-a?usp=sharing

I would like to be clear: the two methods are equivalent. They are both correct. Hackintool in my opinion is more intuitive. It is important to map the USB ports well. https://www.olarila.com/topic/9390-video-guide-hackintosh-usb-port-mapping-with-hackintool/

This USB port mapping is not good, HSxx are 2.0 or internal ports, SSxx = Usb 3.x ports are missing. Do the thunderboalt work ???

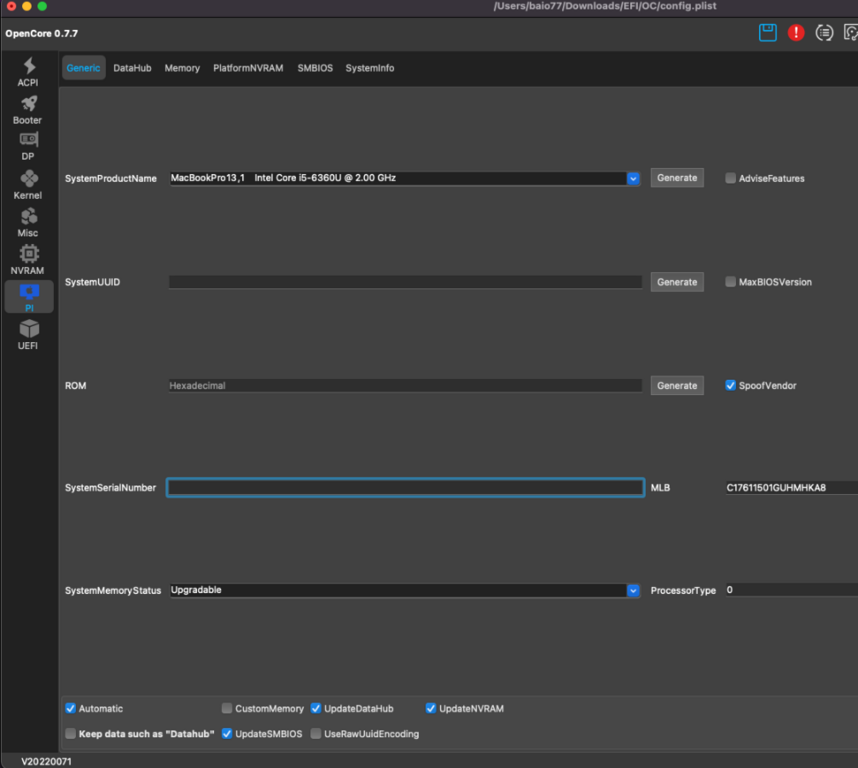

Describe PC characteristics if you need help, if you want to do it yourself, here you are: Generate the serials https://github.com/ic005k/QtOpenCoreConfig/releases/tag/20220071 for both windows and mac, with this you manage the efi of your hack https://github.com/Baio1977/OC-Little-Translated/tree/main/D_Updating_OpenCore Guide

https://github.com/ic005k/QtOpenCoreConfig/releases use this app for update EFI and Kext https://github.com/5T33Z0/OC-Little-Translated/tree/main/D_Updating_OpenCore Guida At each release version there are variations in the configplist the errors you read are either missing parts or in use on old versions of Opencore. The app I posted above cleans the config from these errors with 1 click, obviously the efi must always be updated to the current version. TIP: Clone the EFI SSD and put it in USB and do update tests in USB when everything works pass it in SSD

from Misc menu by opening the config with OCAuxilaryTools

Checking well, I notice graphic IDs NOT suitable for Kabylake Refresh CPUs, I modify the EFI and leave here the new EFI to be tested. The purpose of this EFI is to create a very functional and suitable one for the use of Open Core Bootloader. The EFI that I find on the net for Elitebook or Probook were created for Clover bootloader use, the old Rehabman files must be adapted to the needs of the new bootloader. Opencore does NOT like rename in configplist, best thing is ACPI changes and proper use of IF darwin. New EFI for TEST in USB , if start Ioreg. https://drive.google.com/drive/folders/1ZaekYwLlCZCDMnZm-9QnfBJQmT8Lu1H7?usp=sharing Thank's for all .... Analyzing data at the 1st Post I notice that the trackpad is NOT active. Below the images of ioreg demonstrating that GPI0, I2C0 or I2C1 must be activated. So my develop is a functional EFI for these models.

Post EFI + Ioreg

https://drive.google.com/drive/folders/1ZaekYwLlCZCDMnZm-9QnfBJQmT8Lu1H7?usp=sharing test this EFI in USB , if start ioreg

post all EFI and ioreg please

Did you map USB ports with hackintool ?? Post the ioreg of your hack

https://drive.google.com/drive/folders/1iQSH_O954HE1DDQh-4c8Ysnefc1-Rya7?usp=sharing test this EFI if start ioreg ...

Add this SSDT in my EFI\OC\ACPI and upload it to configplistSSDT-RHUB.aml.zip

Test this EFI Debug https://drive.google.com/drive/folders/1kslYMU4WL4_Wcg2-a8_Ul7g2g149JtbO?usp=sharing , post Sysreport folder

Test this EFI in USB https://drive.google.com/drive/folders/1SLnbcD7sXDRtZnInU0k7j6nakyvWlqJb?usp=sharing , if start ioreg . Added various SSDTs, disabled AWAC, disabled RTC and add ARTC, disabled HPET, see if it works Archivio.zip

https://drive.google.com/drive/folders/1Vb-qDEwa7L_TBSToiGxmsLrHevQ0mAoi?usp=sharing test this , ioreg if start. My EFIs add ACPI patches, some of these patches: added SBUS and MCHC, added Als0, activated SLPB which in DSDT origin is turned off with _STA Zero, deactivated EHCX and subsequent passage of USB 2.0 under XHC, added GPRW patch that usually helps Sleep and Wake All of which in my opinion makes a better hack. All this was added is a consequence of the study of Ioreg and ACPI true Macs themselves SMBios.

ioreg please, I'm not a magician, I need data.

this folder please

Test this EFI in USB , ioreg if start https://drive.google.com/drive/folders/1SiJYFHRNNnDoqnbHt2O4dfWwaMi5AdwM?usp=sharing Don't expect miracles, it takes time and also your Dell's ACPIs to do a good job. EFI Debug 0.7.6.zip Efi debug put in usb run the verbose when the Opencore gui appears start normally inside the EFI debug in USB you will find post files here

https://drive.google.com/drive/folders/1wcSLOYhl79Ev4cmLuxPZ27zGb1dKbC4B?usp=sharing Test this EFI, ioreg if starts. the kext you use for PS2 is very old.

I recommend disabling EH01 ports and swapping ports on XHCSSDT-EHCx_OFF.zip , remove rename usb in config , add this SSDT in EFI \ACPI , restart ad ioreg . Did you extract the ACPI from the bios with Clover bootloader ??

Post ioreg please

https://drive.google.com/drive/folders/1Vb-qDEwa7L_TBSToiGxmsLrHevQ0mAoi?usp=sharing Test this EFI put it in USB and boot os on SSD if I boot my efi's ioreg and check if we have taken care of the problems
