[Guide] E7440 with Clover


pokenguyen

Recommended Posts

From any working real mac run iMessageDebug script on real working mac, (iMac, MacBoo, MacMini, etc...) generate onr txt contains real MLB and ROM number.

Put the Clover configurator RT Variables section, and work...

Hello,

the only mac available at home is a hold macbook, with 10.7.5 !! i can't run imessagedebug !

i try also IOjones, but same , didn't work on 10.7.5 .

any help will be useful .

thank

Link to comment
Share on other sites

I'm not 100% sure if it's your problem but I discovered there are 2 versions 1.3 of the MacIasL compiler floating around. One gave me errors the other no errors just some warnings. I've been using 1.3 built 246 with no problems.



So my MacIASL version is 1.3 (252) : this one gives 3 errors

I also tried the version 1.3 (246), with same origin DSDT.aml : this gives 15 errors !!  No idea. I've attached my DSDT.aml, if someone may try to compile it.




DSDT.aml.zip

I tried dsdtEditor too , this one gave another 15 errors ...





But to move forward, I've used another DSDT.aml from Jake Lo 's pack. Now almost everything is working (HDMI display and audio, SD card reader, sleep, speakers - I 'need to give a try to EAPDFix for audio after sleep).





There is one last thing, the headphone output is still giving white noise. I use the AppleHDA from last Jake Lo's pack (link) version 266.5, even if the kextsat give :

post-51860-0-35493700-1415599592_thumb.png.

but with no luck.



Any advise ?

Link to comment
Share on other sites

Can you show me how your E7240 i7-4600U FHD with touch is working?



Can you share your kext, dsdt and ssdt files for me?

I am unable to make mine (graphics work)



What is your device ID for IGP? is it device ID 01a6 revision:000b?

Hi!



Chipset Model: Intel HD Graphics 4400

  Type: GPU

  Bus: Built-In

  VRAM (Dynamic, Max): 1024 MB

  Vendor: Intel (0x8086)

  Device ID: 0x0a16

  Revision ID: 0x000b

  Displays:

Display:

  Resolution: 1920 x 1080

  Pixel Depth: 32-Bit Color (ARGB8888)

  Main Display: Yes

  Mirror: Off

  Online: Yes

  Built-In: Yes



I use Yosemite all stuff work. attach my EFI folder, kexts, and Clover config.plist

In ZIP file kext section contains 3 separated kext i install these to /S/L/E with kext wizard.

Also i delete from config plist my serial, MLB, ROM, etc, generate your own in Clover Configurator SMBIOS section.



Put complete EFI folder from archive to EFI partition on your DELL...



Clover EFI folder Here!

Link to comment
Share on other sites

  • Moderators

So my MacIASL version is 1.3 (252) : this one gives 3 errors

I also tried the version 1.3 (246), with same origin DSDT.aml : this gives 15 errors !!  No idea. I've attached my DSDT.aml, if someone may try to compile it.



attachicon.gifDSDT.aml.zip

I tried dsdtEditor too , this one gave another 15 errors ...

But to move forward, I've used another DSDT.aml from Jake Lo 's pack. Now almost everything is working (HDMI display and audio, SD card reader, sleep, speakers - I 'need to give a try to EAPDFix for audio after sleep).

There is one last thing, the headphone output is still giving white noise. I use the AppleHDA from last Jake Lo's pack (link) version 266.5, even if the kextsat give :

attachicon.gifCapture d’écran 2014-11-10 à 07.06.09.png.

but with no luck.

Any advise ?



If you change the compiler option to ACPI 5.0, you would end up with 2 errors. Anyway, I compiled it for you.

DSDT-E7440-van_axl.aml.zip



For Audio, make sure to install the patched AppleHDA to S/L/E and remove the dummy AppleHDAALC.kext. Repair and rebuild cache.

Link to comment
Share on other sites

Good morning ladies and gentlemen,



 i cant get my headphone working. Here's my config:

e7440 i5 HD4400 1920x1080, A10 bios (also tried A11).



Vanilla 10.9.5 AppleHDA:

Speakers are working, headphone is correctly detected when plugged in, but totally silent.



Patched AppleHDA plus kernel plus ssdt from here:

Speakers are working, headphone is correctly detected when plugged in, but totally silent.





booting with -f does not make any difference.



Q:  I have only applied one dsdt patch from post 1. Do i need to patch more? If so what??



Thanks,

 Armin

Link to comment
Share on other sites

Hi!



Chipset Model: Intel HD Graphics 4400

  Type: GPU

  Bus: Built-In

  VRAM (Dynamic, Max): 1024 MB

  Vendor: Intel (0x8086)

  Device ID: 0x0a16

  Revision ID: 0x000b

  Displays:

Display:

  Resolution: 1920 x 1080

  Pixel Depth: 32-Bit Color (ARGB8888)

  Main Display: Yes

  Mirror: Off

  Online: Yes

  Built-In: Yes



I use Yosemite all stuff work. attach my EFI folder, kexts, and Clover config.plist

In ZIP file kext section contains 3 separated kext i install these to /S/L/E with kext wizard.

Also i delete from config plist my serial, MLB, ROM, etc, generate your own in Clover Configurator SMBIOS section.



Put complete EFI folder from archive to EFI partition on your DELL...



Clover EFI folder Here!

Thanks, Interesting. You have an additional AppleIntelFramebufferAzul.Kext



Are you following the clover installation in this thread?

Link to comment
Share on other sites

Thanks, Interesting. You have an additional AppleIntelFramebufferAzul.Kext



Are you following the clover installation in this thread?

I following this thread, and Jake Lo posts, tutors and kexts. Mixed all :)

AppleIntelFramebufferAzul patched for HDMI Audio and HDMI no freeze fix.



Do Not Forget!

My stuffs is for OSX Yosemite 10.10!!!! No Mavericks



Also, my BIOS is A10 - A11 now... Your Bios version same???

Link to comment
Share on other sites

Good morning ladies and gentlemen,



 i cant get my headphone working. Here's my config:

e7440 i5 HD4400 1920x1080, A10 bios (also tried A11).



Vanilla 10.9.5 AppleHDA:

Speakers are working, headphone is correctly detected when plugged in, but totally silent.



Patched AppleHDA plus kernel plus ssdt from here:

Speakers are working, headphone is correctly detected when plugged in, but totally silent.





booting with -f does not make any difference.



Q:  I have only applied one dsdt patch from post 1. Do i need to patch more? If so what??



Thanks,

 Armin

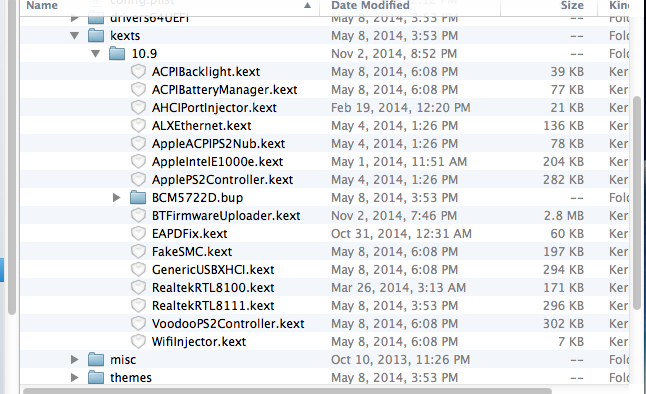

Try the dsdt.aml from the same page you're linking. It's patched for HDEF and HDMI. Also add EAPDfix.kext in the Clover EFI, like this:

And clear caches and rebuild a few times use DPCIManager for that job.







Link to comment
