[Guide] E7440 with Clover


pokenguyen

Recommended Posts

Hey guys sorry but I don't get it



the installation should be in a specific way ?

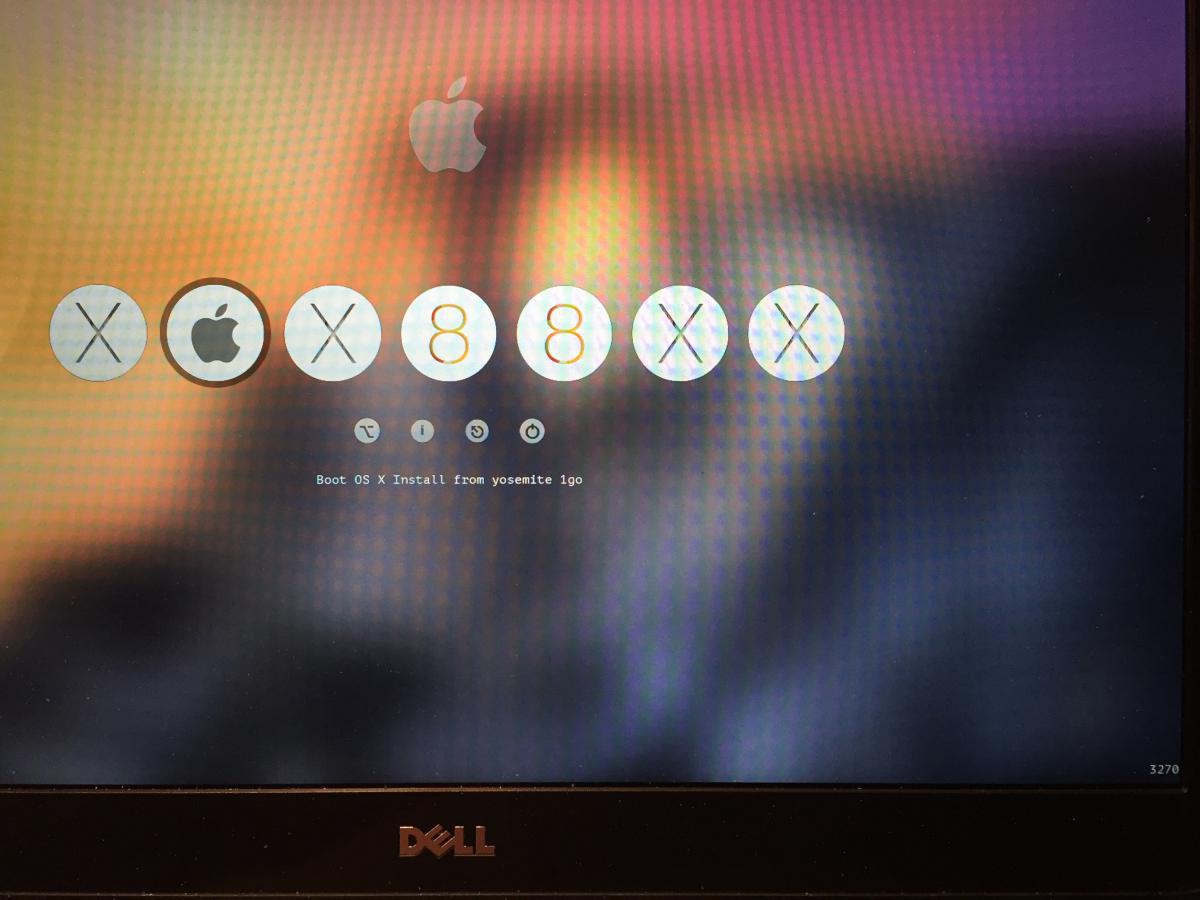

I just downloaded the ISO from the app store, it started the installation but after the reboot my clover give me 3 choices:



  • my disk
  • the recovery
  • the instlation,

this last if started end up on a red Apple Logo



should I do something else ?

Link to comment
Share on other sites

Jake: thank you for your help and I was able to upgrade my E7440 to 10.11 without any hiccups. The bluetooth transport gave a problem but was passed by disabling my wifi card switch.



I need assistance in the sound department. I believe that I have a vanilla AppleHDA.kext (version 272.50, 3.8 MB, 9/16/2015) and have installed AppleHDA_ALC292.kext and Codecloammander.text as well (from you links). In the clover i also have three HDA patches for audio to work. It used to work well with Yosemite but I have no luck with 10.11. I am using DSDT provided by you in recent post. Please shine a light what is the course of action to remedy this situation. Thanks

Link to comment
Share on other sites

did you have a small tuto for update from 10.10.5 to el Capitan ?



what i have try without success :

- copy text on EFI from kext / 10.10 to 10.11

- add this as #463



<key>RtVariables</key>

<dict>

<key>BooterConfig</key>

<string>0x28</string>

<key>CsrActiveConfig</key>

<string>0x67</string>

</dict>

-download el capitan installer from Appstore,

launch the installer

reboot



is it correct ? because installation will not start...

any help is welcome... thank

Link to comment
Share on other sites

El capitan update won't start....

10.10.5  is running well, clover is updated to 3270, and clover configurator is 4.24.0.

i have follow the step provided and updated by JakeLo in post #463, but no luck, installation will not start.

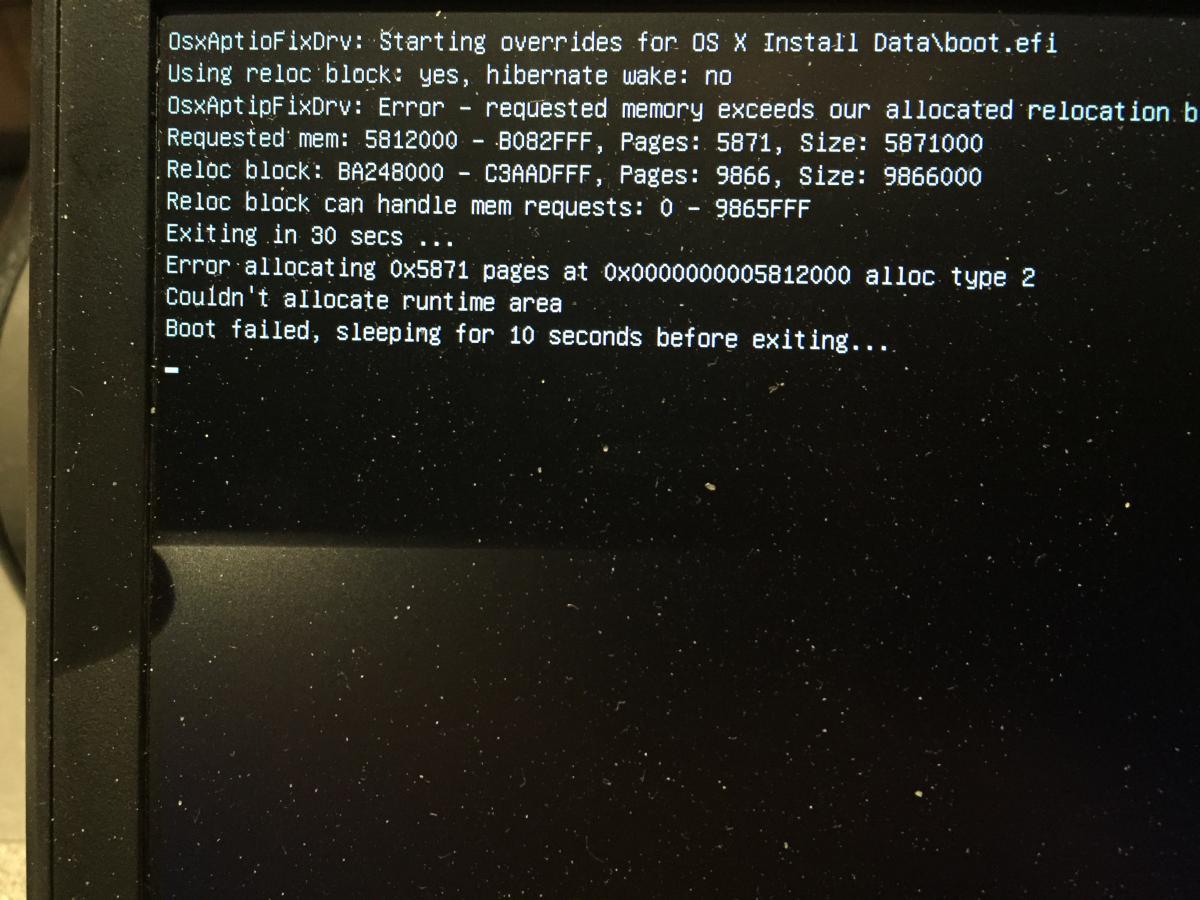

attached is picture of the message in verbose mode.

i have try in safe mode, but exactly same.

i really need help .

thank

the 10.10.5 is still booting correctly with the new and attached config.plist



config.plist.zip



Link to comment
Share on other sites

I was able to successfully install and boot to El Cap, but after restart, getting this KP upon boot up..



Sun Oct  4 07:17:42 2015

*** Panic Report ***
panic(cpu 2 caller 0xffffff80003cdeca): "PHYSMAP_PTOV bounds exceeded, 0xffffff2710410068, 0xfffffea780000000, 0xfffffee780000000"@/Library/Caches/com.apple.xbs/Sources/xnu/xnu-3247.1.106/osfmk/i386/pmap.h:463
Backtrace (CPU 2), Frame : Return Address
0xffffff8106fdbc50 : 0xffffff80002e5357
0xffffff8106fdbcd0 : 0xffffff80003cdeca
0xffffff8106fdbd40 : 0xffffff80003cdb46
0xffffff8106fdbd90 : 0xffffff80008c689d
0xffffff8106fdbdd0 : 0xffffff7f823c5e91
0xffffff8106fdbe10 : 0xffffff7f823c47f8
0xffffff8106fdbe40 : 0xffffff7f823c4777
0xffffff8106fdbe60 : 0xffffff80008a3bdc
0xffffff8106fdbee0 : 0xffffff800089d212
0xffffff8106fdbf00 : 0xffffff80003196ba
0xffffff8106fdbfb0 : 0xffffff80003d14b7
      Kernel Extensions in backtrace:
         org.emlydinesh.driver.EAPDFix(2.0.1)[5EA27FE0-A297-3D09-95C2-8149A1A4B5EE]@0xffffff7f823c3000->0xffffff7f823ccfff
            dependency: com.apple.driver.AppleHDAController(272.50)[7A5FAC87-3715-3982-8CCC-D4FA619D62C3]@0xffffff7f82260000
            dependency: com.apple.iokit.IOAudioFamily(203.8)[189C80CB-2EFA-31A9-9380-AD970C691BBC]@0xffffff7f80c9c000
            dependency: com.apple.iokit.IOHIDFamily(2.0.0)[353AFBA9-8775-34E3-BF8B-40D7AD2C500A]@0xffffff7f811d3000

BSD process name corresponding to current thread: kernel_task
Boot args: dart=0 -gux_defer_usb2 kext-dev-mode=1 -v "Kernel=/System/Library/Kernels/kernel" slide=0

Any suggestions? I was able to boot in safe mode but don't have access to EFI in safe mode..

--EDIT-- Had to boot into my windows partition to edit the kexts in my 10.11 folder. had a bad one in there. Don't know how it got there! But fixed.
