Found 12 results

  1. Hello. I'm attempting my first hackintosh, so I'm very much a noob at this and know little to none about it but I'm doing my best with the info I've found. First, I attempting using this video (https://www.youtube.com/watch?v=o6SmFSjkEkY&t=1032s) in order to do a simple Clover install, but everytime I tried to boot to it it'd say that something was wrong with my config.plist file, and then the screen would go black after selection MacOS boot from Clover. I tried a couple different config.plist files and all gave the same results. I asked the Hackintosh subreddit for help and they just told me to use OpenCore. Dead end. Is there somewhere that i can grab a config file specifically for the E5450? Or an entire Clover file at that? And if not, how can I go about making one? *E5450 Specs* Core i5-5300U Intel HD 5500 Any help is appreciated
  2. Hello, I have plus E-Port on my E5450 and i have some problem with DP Connection. When i try to use DP on the e-port, monitor say display port no signal. In window 10, same HW config, dp out 4K @60Mhz on my asus monitor . ( i exclude cable problem) When i boot with lcd close, dp connected, i see boot screen at mojave statrtup but it never switch to graphical mojave login screen on my monitor. When i boot with lcd open, evry thing work but i have display port no signal on monitor I inspect ioreg entrys, on FB0 is use for ldc (monitor applebacklightdisplay), FB1 and FB2 type DP and monitor is reconize as appledisplay but allways no signal on monitor (with DP input on it), with this config, when i plug HDMI monitor work correcly. When i change connection it appear be correct in ioreg igpu framebuffer and monitor ( value change automaticaly when i change cable connector position on e-port. Has anybody idea how to find issue ? I have read a lot of page on the subject but i don't find the way to find solution ( probably due to knowledge for this subject ), I have update to last cover version but it's the same. I my config, everything work perfecly exept this point. Attached, Dump and ioreg In advance, thanks a lot for your help. debug_19326.zip ioreg.dump.ioreg

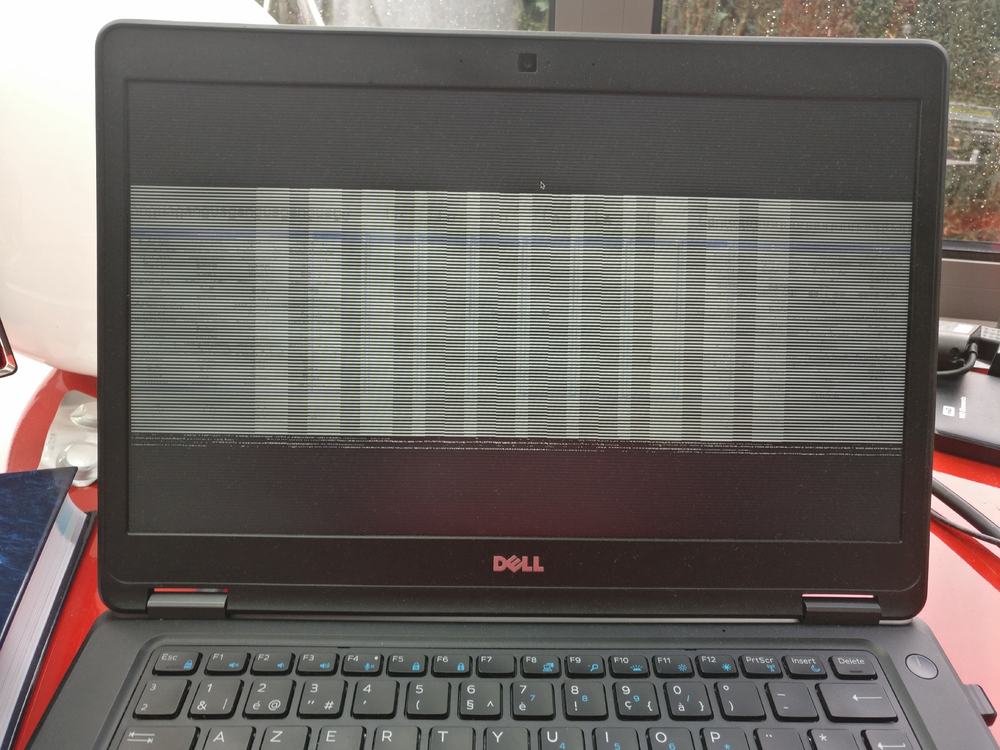

  3. Hello, I have Latitude E5450 Intel core i7-5600 @ 2.6 GHz with a 1080p laptop screen. I try to install Mojave, no panic at clover boot but when the welcome screen from apple was bad. Could you tell me what is wrong ? Thanks a lot Jean-Luc
  4. Hello people, i am totaly new to this website and for years i have been trying different to dual boot or simply have macOS on my Dell Latitude E5450. If there is anyone out there who can help me, please response. Thank you very mcuh!
  5. Greetings.. Picked up an E5450 (i7-5600U/HD5500<366x768>) for the purpose of using as a mobile audio multitrack workstation, only to find out that ProTools 11 is only supported to the end of Yosemite. I've searched the forum base as well as the bootPacks, and it seems like things only get started with this series at El Capitan. I tried booting, but KP'd rendering the image shown in the attached picture. Am I barking up an impossible tree? Thank you. 5450 KP.zip
  6. Hi guys 0 successfully upgraded to Mojave on my Dell E5450 - update went smoothly however lost sound. Originally on the ALC293 however in a way to enable audio installed AppleALC with whatever green kext and disabled the patches in config plist however no luck. Hoping I can get some help ? CLOVER.zip
  7. Hello, I retry the installation of OSX on my Latitude E5450. This model has: · CPU Type Mobile DualCore Intel Core i7-5600U, 2600 MHz · Motherboard Chipset Intel Wildcat Point-LP, Intel Broadwell · RAM: DDR3-1600 DDR3 SDRAM · VIDEO Intel HD Graphics 5500 · Audio Adapter Realtek ALC293 @ Intel Wildcat Point-LP PCH - High DefinitionAudio Controller [F-0] · Network Adapter WLAN Dell Wireless 1707 802.11b/g/n (2.4GHZ) · Network Adapter LAN Intel(R) Ethernet Connection (3) I218-LM · BIOS Properties: Version A11 I already tried before using a tutorial for an I5 version and it did not work. Could you help me solve the problem? I add as attachment the result of the config report of my computer Thank you for your help! Best regardsDELL_LATITUDE_E5450_I7_Hardware_Report_TXT_EN_OK.rar
  8. Hello. My laptop Dell E5450. BIOS A19. Video - only HD 5500 Install - everything ok exept install kext. No audio. Wifi too. DW1560 Use guide from https://osxlatitude.com/index.php?/topic/9519-solved-getting-dw1550-dw1560-dw1830-to-work-on-sierra/ My clover folder - below in attach file kext from LE copy to L/E - 5 kext Please help fix this problem EFI.zip

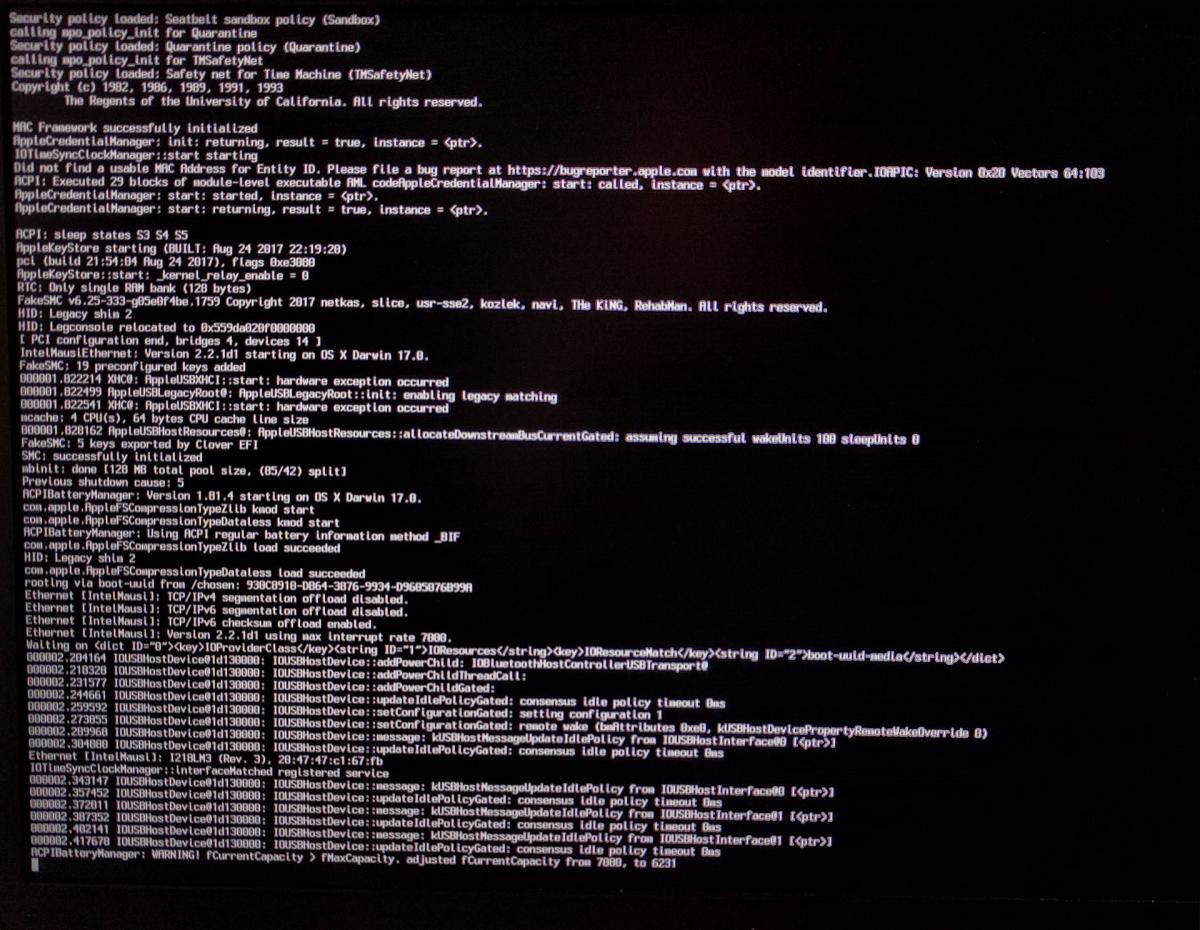

  9. I'm trying to install High Sierra on Dell Latitude E5450 Intel i5-5300 with HD Graphics 5500 (no dedicated GPU) The Bios Version A07 SATA SSD (Samsung EVO 850) that is in AHCI mode I have tried using bootpack from: https://osxlatitude.com/index.php?/topic/10207-e5450-fresh-install-high-sierra-and-few-problems/ But I'm stuck at "Still waiting for root device" (the attached screen is exactly before the message). Here are the "origin" AML files (from my system) and the clover folder (removed binaries but kept all info.plist for kexts to fit in 2MB). Clover version is rev 4330 (UEFI mode). BIOS DVMT is set to 64MB (using the utility that I can't remember the name since I set it up for Sierra) I even tried cloning the USB stick (install partition) to the SSD and booting from there, but the same happens. What am I doing wrong? Thank you in advance. Note: I had Sierra successfully installed on this laptop, and I have High Sierra successfully installed on another E5470 with Skylake booting with the same Clover version. e5450-origin.zip e5450-clover.zip
  10. Hello all! This is the guide I am following: https://osxlatitude.com/index.php?/topic/8506-dell-latitude-inspiron-precision-clover-guide/&do=findComment&comment=54632 I've been toying with this E5450 for a while now and have finally gotten some progress, turns out I was an idiot and didn't configure the Bios properly: (I missed this) 2. Press F2 to configure the BIOS Sata Operaton -> AHCI Secure Boot -> Disabled Boot List Option -> UEFI. Enable Legacy Option Rom Apply and Exit So now I am getting I'm getting past the initial loading but it bombs out with this kernel panic: Some notes: Boot pack - I used this one: Broadwell - (See Note2 below) E5450_HD5500.zip 418.94KB 442 downloads Updates: I followed note to check for updates and replaced this kext: E7x70, E7x50, E5450, Precision 7510 AppleHDA_ALC293.kext.zip 13.26KB 385 downloads Anyone have a red hot clue what I did wrong? Thanks for reading. Eternally grateful
  11. Hello All. Thanks to the Shared Knowledge I have manage to Installed El Capitan on my E5450 using Clover with the bootpack posted on previous. post https://osxlatitude.com/index.php?/topic/8180-yosemite-on-e5450/page-3 I am still having issues with Graphics and Network: Graphics Issue: graphics are flickering like when it runs on save mode. I notice the following message on verbose mode: [iGPU] Graphics Driver failed to load could register with FrameBuffer. I guess Graphics driver is not loading when booting. Network Issue: Intel Wifi will have to be replaced but I notice that the wifi card it is smaller card than the BCM that I used for my M4600. Do you know which card should I buy? Ethernet is not being recognized at all I have attached my Original ACPI Files using F4 on Clover for possible patching help. Any Help is much appreciated... Happy Holidays to all. ACPI.E5450.CyberRedeem.zip
  12. Hi all Have been reading through the 2 other e5450 posts trying to work out how to get Yosemite up and running properly on my E5450, and have managed to complete the install using Clover. Specs are as follows: DELL Lattitude E5450 i5-5200U Broadwell 2.20Ghz 8GB RAM Intel HD 5500 1080p touchscreen 500GB HDD (not SSD) Using the latest Clover. Installed Clover using Install for UEFI booting only option. Added HFSPlus-64.efi Added FakeSMC.kext, GenericUSBXHCI.kext, VoodooPS2Controller.kext. Added config.plist Set ig-platform-id to 0x16160002 The main issue is that the graphics aren't accelerated and are really slow. It's reporting the Intel 5500 with only 7MB of RAM. Any advice on how to fix it? Thanks
