Jake Lo

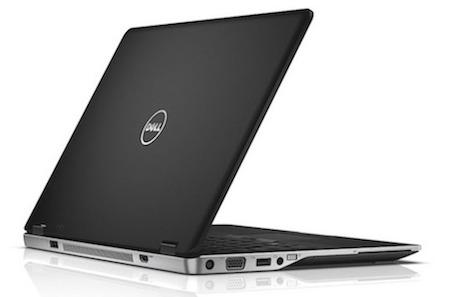

6430u with Intel HD 4000 Credits: Special thanks to myHack (conti) Zenith432 for GenericUSBXHCI - USB 3.0 qwerty12 for DisableIntelTurboBoost for Power Management EMlyDinEsH for patching original AppleHDA Specs: BIOS A06 | i7-3667U 2.5GHz vPro| 8GB DDR3 | Intel HD 4000, 1366x768 | Rebranded Dell DW1510 | Mavericks CPU: Vpro enabled 3rd Gen Core. (i7-3667U 2.0Ghz) 14" reflection reduced glossy screen in 1366x768 HD 4000 graphics Gig Ethernet, 2x USB3.0, 1xUSB/eSATA connector, VGA, HDMI 2 slots for SSD and Cellular card option Array Mic HD Webcam Smartcard and Fingerprint Reader Working: Full QE/CI (HD 4000) Keyboard and mouse (multitouch) Audio - patched AppleHDA (IDT 92HD93xx) HDMI - Video and Audio (patched Intel FB) Wifi - replaced Intel Card with DW1510 (rebranded) Sleep/Wake/Shutdown/Restart LAN (AppleIntelE1000.kext) USB 3.0 (GenericUSBXHCI.kext) Webcam (OOB) Let's get started... I use the myhack method for this build, so follow instructions to build your USB installer, set BIOS settings and run the OSX Installation from here http://myhack.sojugarden.com/guide/ For best results, set BIOS to default, apply it and then go back to set Sata Operation to AHCI After creating your USB installer, run myHack again Select Install Extra and point to the Extra folder attached Extra_6430u_Mav_i7-3667u.zip Boot up system with USB installer disk with the -v flag Format the HDD per instruction from myHack (Guid/Journaled Extended) Continue with the Installation Select "Use my Own" when prompt and point to the Extra folder in the root of the USB installer When prompt to remove problematic kexts, select Yes, Yes, No After a few minutes, it'll restart the computer. Remove the USB installer Complete the customization ( if you get Invalid Partition Table during boot - just hit enter) After logging on: in System Preferences Enable Clicking for Trackpad Allow apps downloaded from: Anywhere for Security & Privacy Launch myHack, Install Chameleon to fix the "Invalid Partition Table" error Important: If you have higher resolution (1600x900), replace AppleIntelFramebufferCapri.kext in the bootpack otherwise you'll get a blank screen after boot. AppleIntelFramebufferCapri.kext.zip 361.77KB 158 downloads BIOS UPDATE Don't update BIOS to version A07 or A08, causes major screen artifacts! Fixed bt applying the FBMem patch that reduces memory from 16MB to 8MB Fixes: If you encounter error above when launching DVD Player, replace DVDPlayback.framework.zip 2.86MB 13 downloads in System/Library/Frameworks. Don't forget to backup the original file. JL

You can bake and revive that faulty board in the oven if you know what you're doing.

go to preferences/network. Select the + at the bottom left, interface name, select Wi-Fi from the drop down, then click create.

Download lspci byEvOSX86 and install it. Some system only works on MBR like some lenovo. Create installer with myHack and google for an MBR patch, that should get you going.

Not loading for me - E6420. Using Chameleon v2380.

Try GenericUSBXHCI for USB 3.0 and VoodooHDA+AppleHDADisabler for Audio.

See this. Most guides are for Desktop HD 4600 not laptop HD4600. Not sure if it'll work on a Dell as I have not tested it.

So the SSDT got all your USB ports working now? For port replicator to work, you might need your DSDT patched. I'm no expert when it comes to patching DSDT. There might be some issue with HDMI and HDMI audio for HD 4600 mobile on 10.9.4 and no solution as far as I know for now.

See this thread. #51 and #52. Seems his E6320 webcam is not working either.

Here you go. i7-4610M SSDT ssdt_i7-4610M.zip

Realz, Clover automatically patch the kernel. With Chameleon, you'll need to manually patch and add it. My boot pack has patched kernel for 10.9.0. Make sure you replaced it as ktbos did a few posts back for 10.9.4

Those must be USB 3.0 ports. GenericUSBXHCI.kext should work. Check kextstat to see if it's loaded. It might require a patched DSDT to work. Looks like i7-4610M is not in the script. I'll try to generate one for you

try booting with IntelAzulFB=10 -v if still failed to load graphics, you'll have to try all value from 0 - 15 until you get one that loads perfectly

see guide and boot pack here

Get latest patched AppleHDA here, need to add HDAEnabler=Yes in boot.plist too.

Make sure you set the BIOS to the default first, apply and then set SATA Operations to AHCI. Also try adding USBBusFix=Yes during boot.

I believe that boot pack is for 10.9.2, so the patched kernel won't work for 10.9.4. Get it here on the bottom of the guide. Also you can't use the SSDT for your CPU. After building your system, use HVT to generate the SSDT for you CPU, under tools->SSDT Generator. The gpu for your unit is HD4600 not HD4400, so if you don't get graphics right, use Chameleon Wizard, change the FB value to 10 instead of 12. Also you can add dart=0 to the boot.plist.

You have to take into account what version of Mavericks you're installing as the patched kernel is different and what version the boot pack has.Your attachment didn't get added, please link to it if you download it from there.

You could use HVT, under tools, select SSDT Generator. It uses PikerAlpha's script to automatically generate one for you and place in /Extra

That could be due to your display resolution. What's your screen max resolution?

Try boot pack from this thread. You'll need to replace the SSDT for your processor

Yes, Lenovo systems requires Memory Protection turned on.

Try new patched by Mirone here.

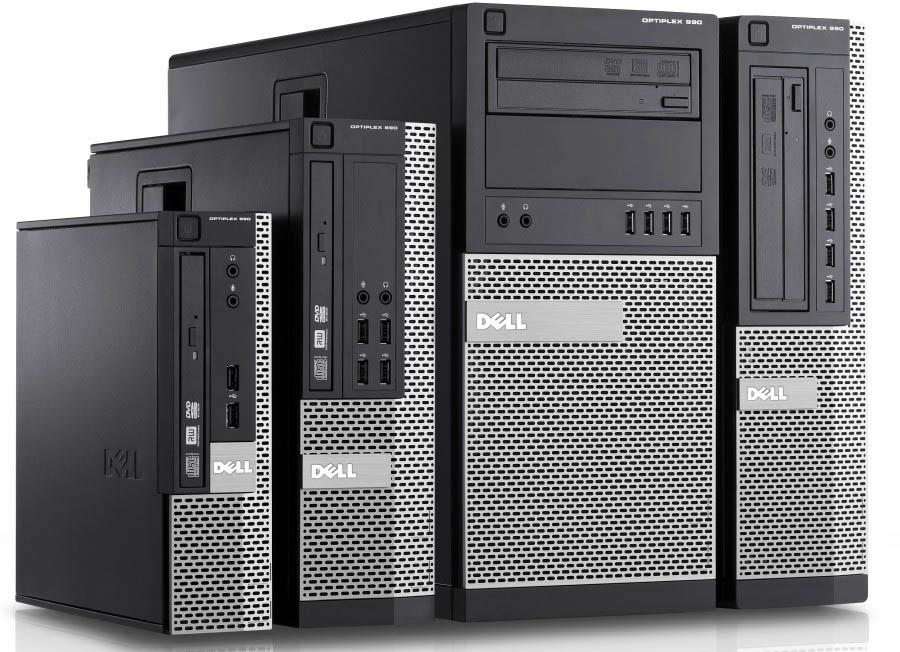

Recently got a hold of an Optiplex 990. Saw a few threads here regarding this model but no guide or bootpack in any of them, so I decided to write one up. An easy build as mentioned by Dan Marshall, runs really smooth. It comes with an AMD HD5450, didn't try the built-in Intel HD2000. Credits: Conti - for myHack Slice - latest VoodooHDA 2.8.6 Dr. Hurt from Insanelymac - patch DSDT for HD5450M Specs: i5 - 2400 3.1GHz | 8GB ram | HD2000/AMD HD 5450M | 128GB SSD | Mountion Lion 10.8.5 | Mavericks 10.9.4 | BIOS A18 Build USB Installer with myHack Download and Extract bootpackExtra.zip Relaunch myHack, select Install Extra, select USB Installer as target drive. Select "Use my Own" and browse to Extra above Boot with USB Installer ( Make sure to plug monitor to DVI, vga is not supported) Format disk to GUID and Extended Journal and start the build When prompt, select "Use My Own" and point to Extra on USB Installer When prompt to remove problematic kexts, select Yes, Yes, No Wait a few minutes, system will automatically reboot, remove the USB Installer Complete the installation Done. Working: AMD HD 5450 Full QE/CI Dual Display Sleep/Shutdown/Restart LAN Audio using VoodooHDA 2.8.6 Note: Make sure to set SATA Operation to AHCI. For best result, set it to the Default, apply and then set SATA Operation to AHCI. /!\ For Mountain Lion install, remove AppleKextExcludeList.kext from bootpack /!\ For Yosemite Install, see guide here and boot pack posted here

You'll need a patched kernel for your haswell processor. Read more about it here.
